Stedi

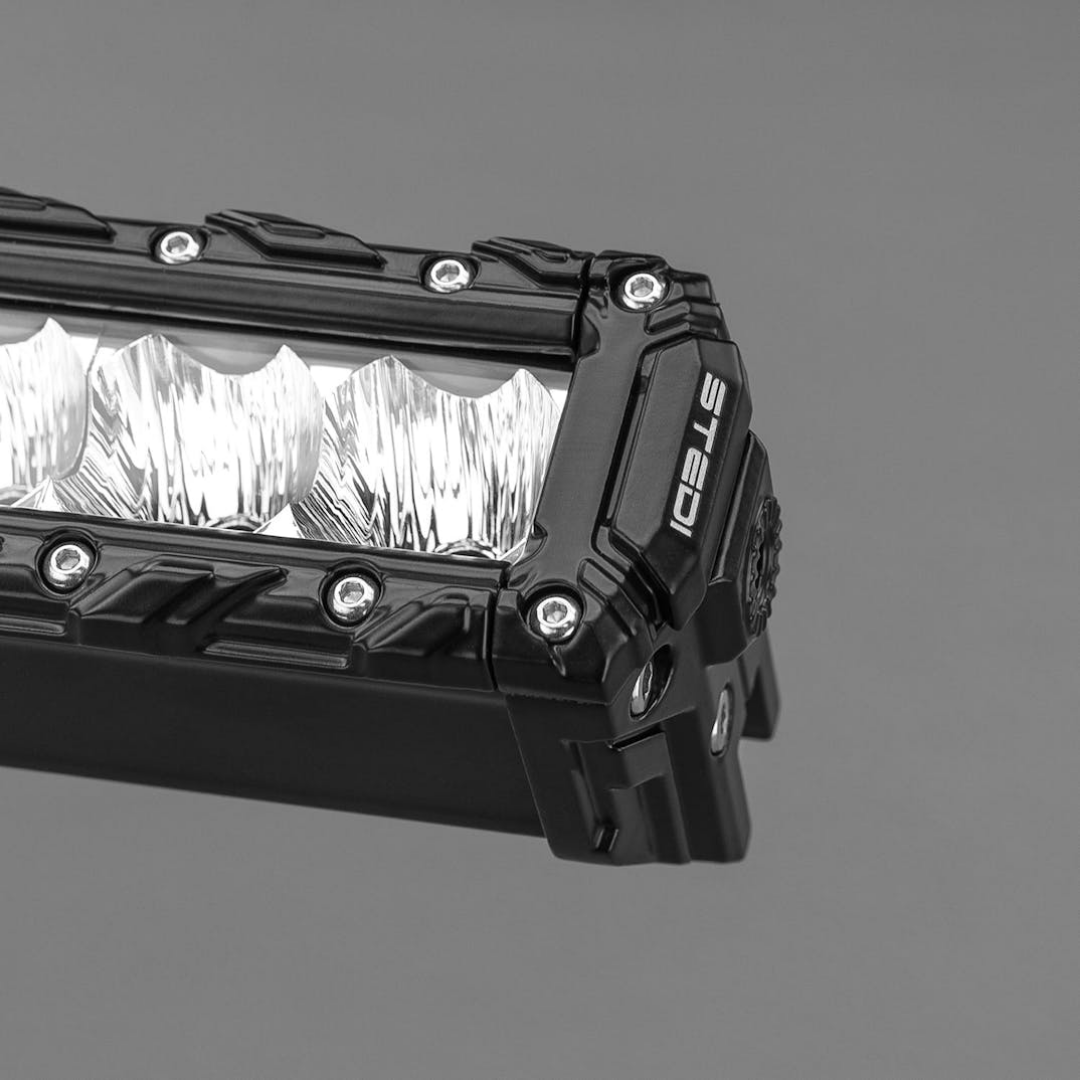

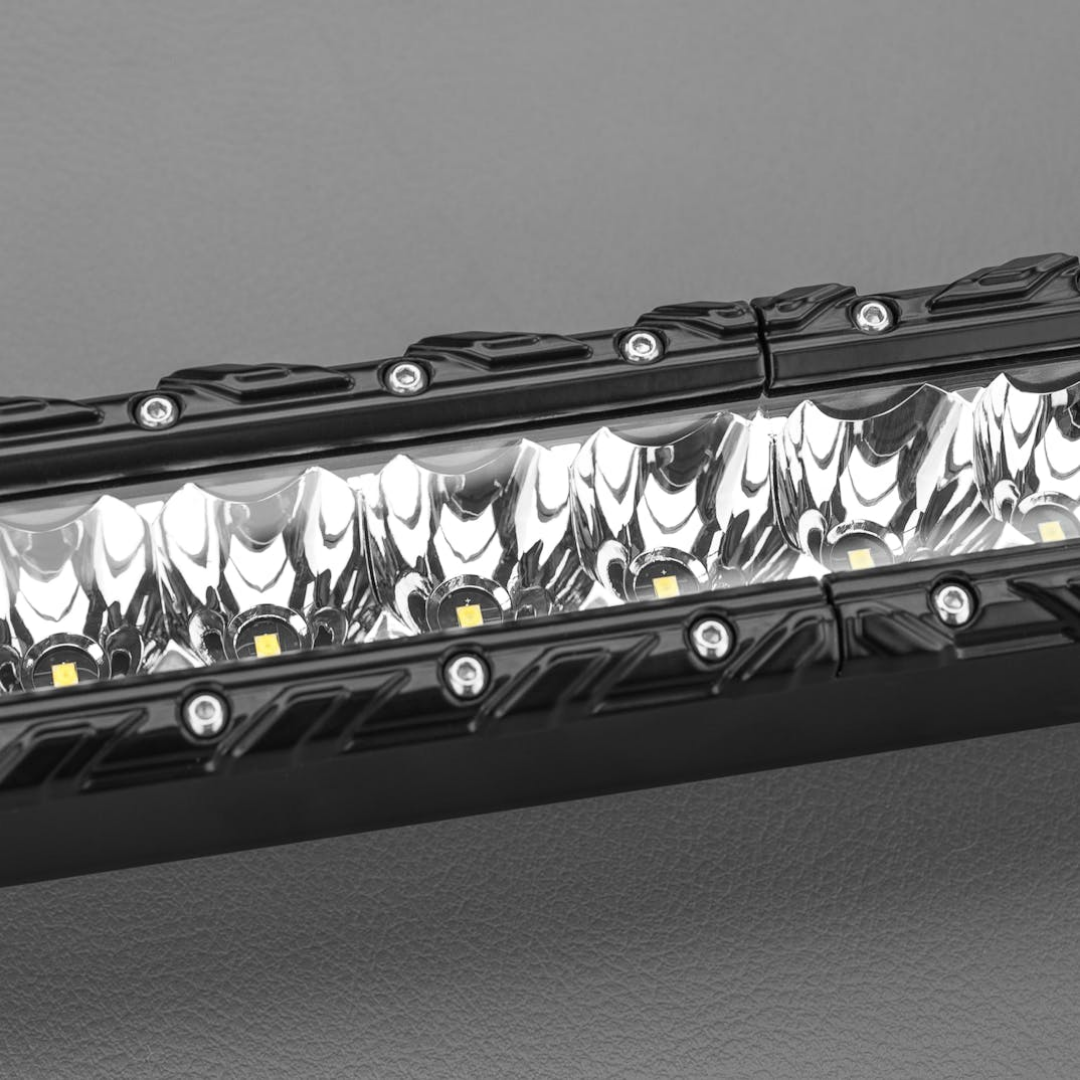

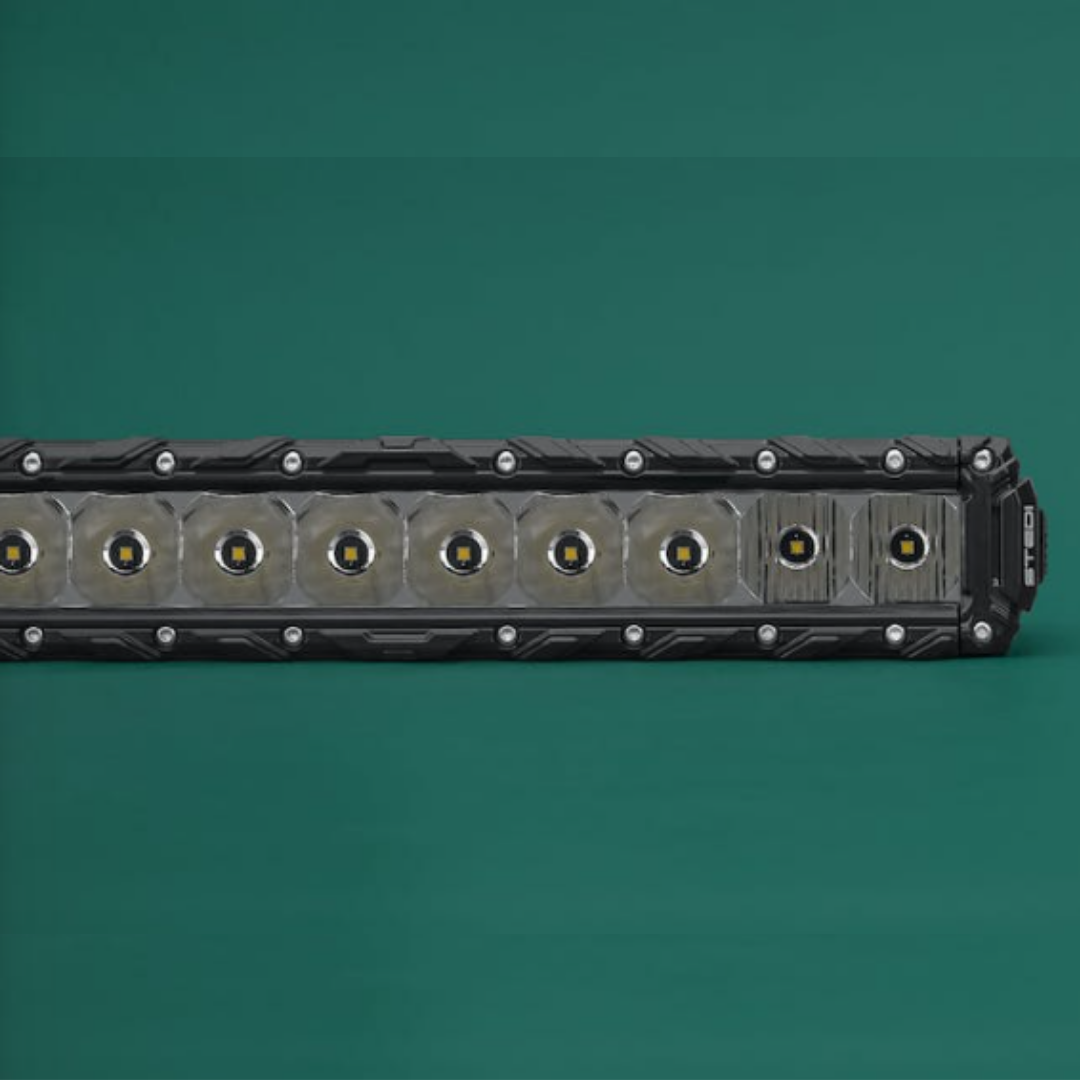

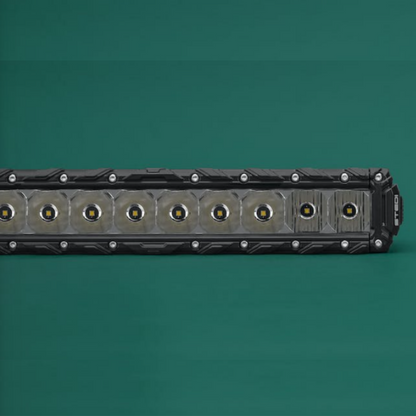

STEDI ST3K Slim Light Bar 21.5"

STEDI ST3K Slim Light Bar 21.5"

SKU:LEDST3K-20L

Regular price $219.00 AUD
Regular price Sale price $219.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

THE DEFINITION OF CALIBRE.

Our STEDI ST3K LED Light was designed to bring a large amount of light to a small amount of space. With a total height of just 63mm (with the side brackets attached), you will find the ST3K is able to be mounted on your front bar or grill, whilst maintaining the factory look of your vehicle.

TIMELESS DESIGN.

The ST3K 21.5 Inch LED Light Bar utilizes the Pure Drive technology (of Type-X and ST4K fame), to deliver a powerful punch. The ST3K 21.5 Inch LED Light Bar can also be mounted in tight spaces, allowing it to suit a wide and unexpected range of vehicles.

BRILLIANCE IS THE NAME OF THE GAME.

The ST3K range is easily comparable to the STEDI Type-X and ST4K range. With a strong penetrating beam of 493m at 1 LUX and 55m out to the shoulders of the road (with flood beam), the ST3K 21.5 is the perfect all-rounder!

THE NITTY
GRITTY.

MARKET LEADING PERFORMANCE.

ST3K-20L features 20 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.

 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m

True White 5700K Colour temperature offers stunning clarity and definition.

Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch DT-2 connector.

Protected against EMC and RFI.

Protected against EMC and RFI.

Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

Click here to find your vehicle-compatible Piggyback Adapter.

Includes our Easy Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market ours has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems

Backed by a 5 Year Replacement Warranty.

TECH SPECS

LED 20 x Osram Oslon White
EFFECTIVE LUMEN 4,100Lm
PEAK INTENSITY 243,200cd
OPERATING VOLTAGE 10-30V DC
IP RATING IP68
CURRENT DRAW 4.3A @ 13.5v
COLOUR TEMPERATURE (CCT) 5700 Kelvin
HOUSING MATERIAL Aluminium Extrusion & Cast
LENS GE™ Lexan
MOUNTING BRACKET Powder Coated 3mm Stainless Steel
BOLTS AND FITTINGS 3 Series Stainless Steel
BEAM TYPE Flood Spot Combo
LIFESPAN 50,000 Hours
WEIGHT 1.855
OPERATING ENVIRONMENT -40° to +50° Celsius
PHOTOMETRIC DATA
10 M 2, 430 Lx
50 M 97 Lx
100 M 24 Lx
200 M 6 Lx
493 M 1 Lx
