Carbon TANK - 12000lb Winch 12V No Hook

Indestructible Power, Lightweight Design

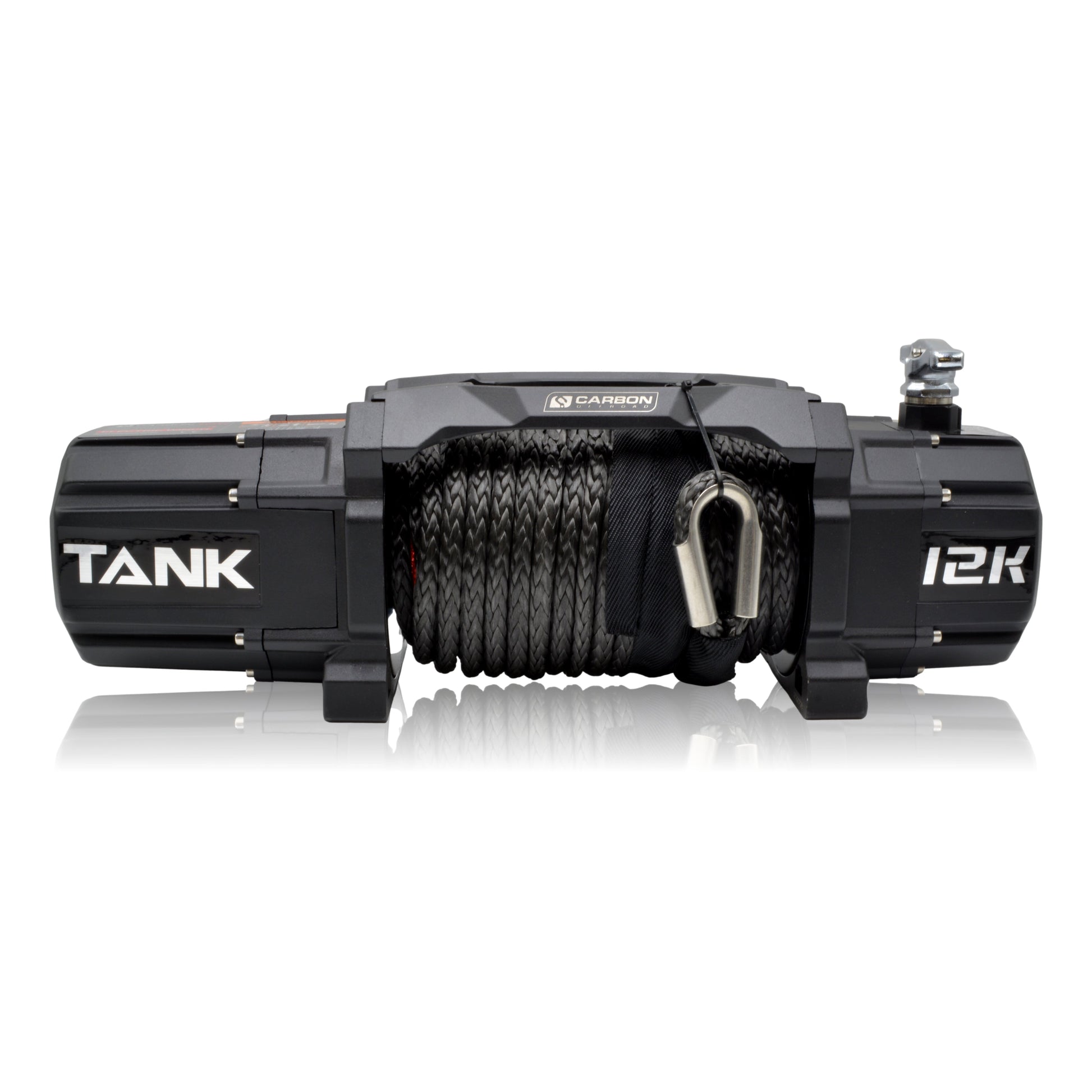

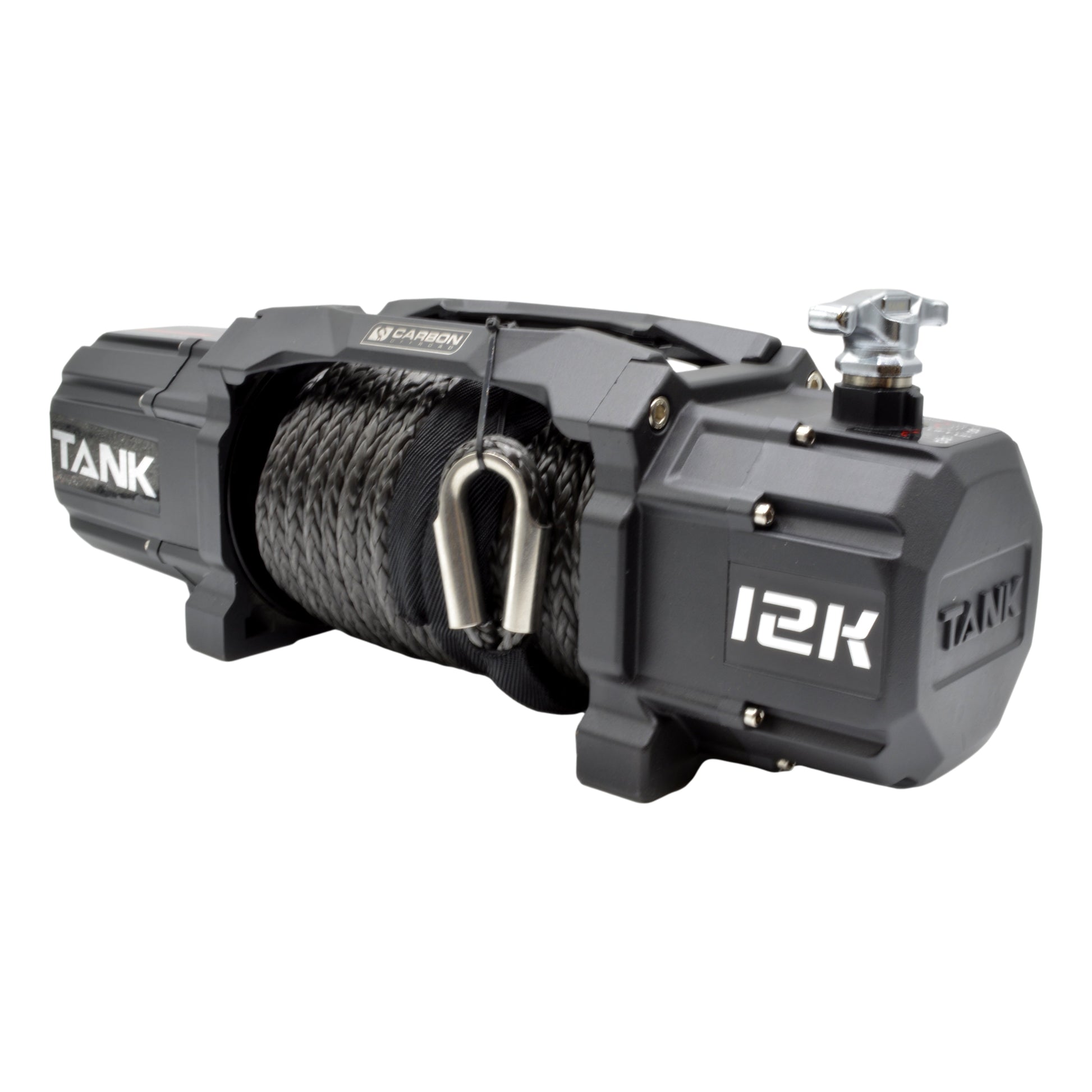

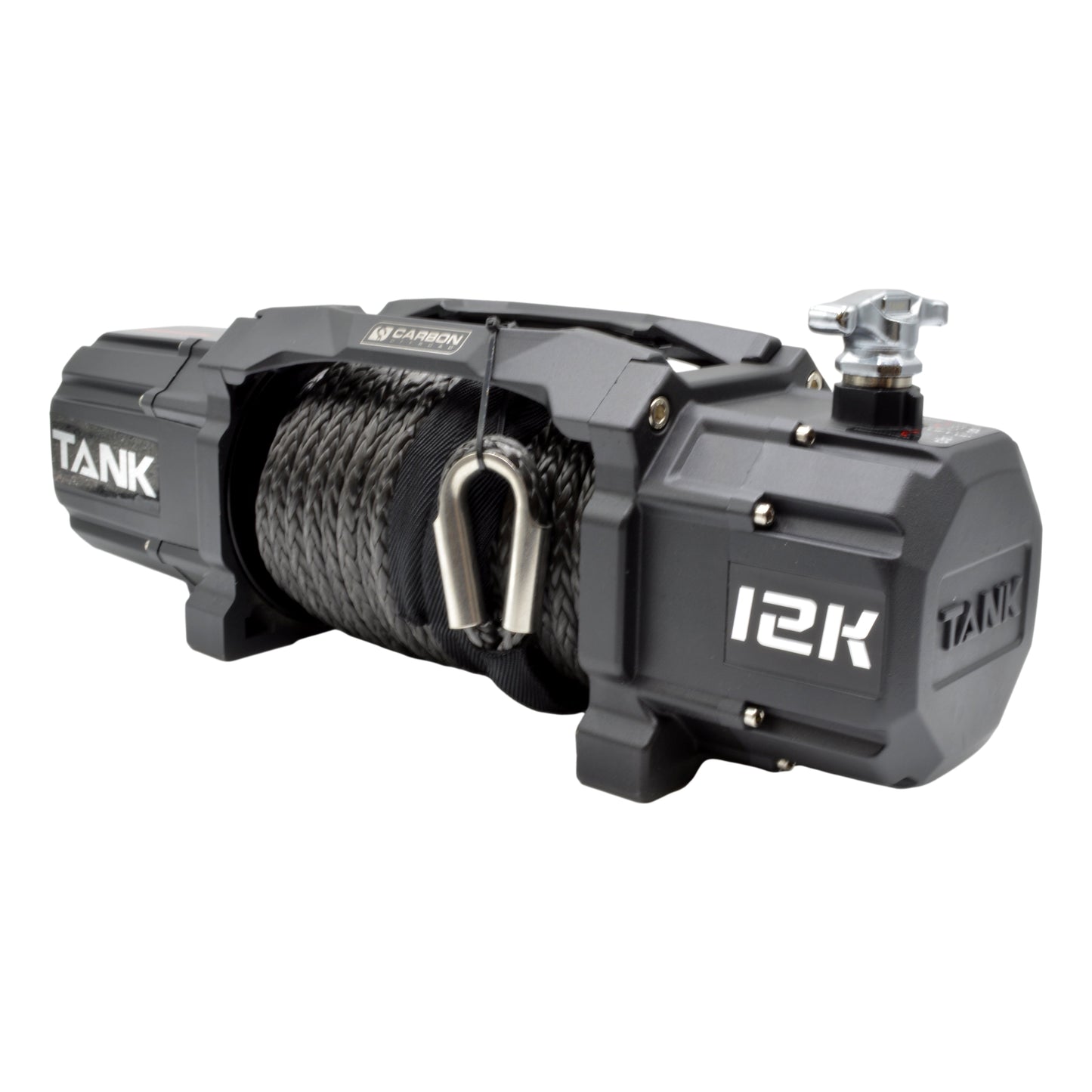

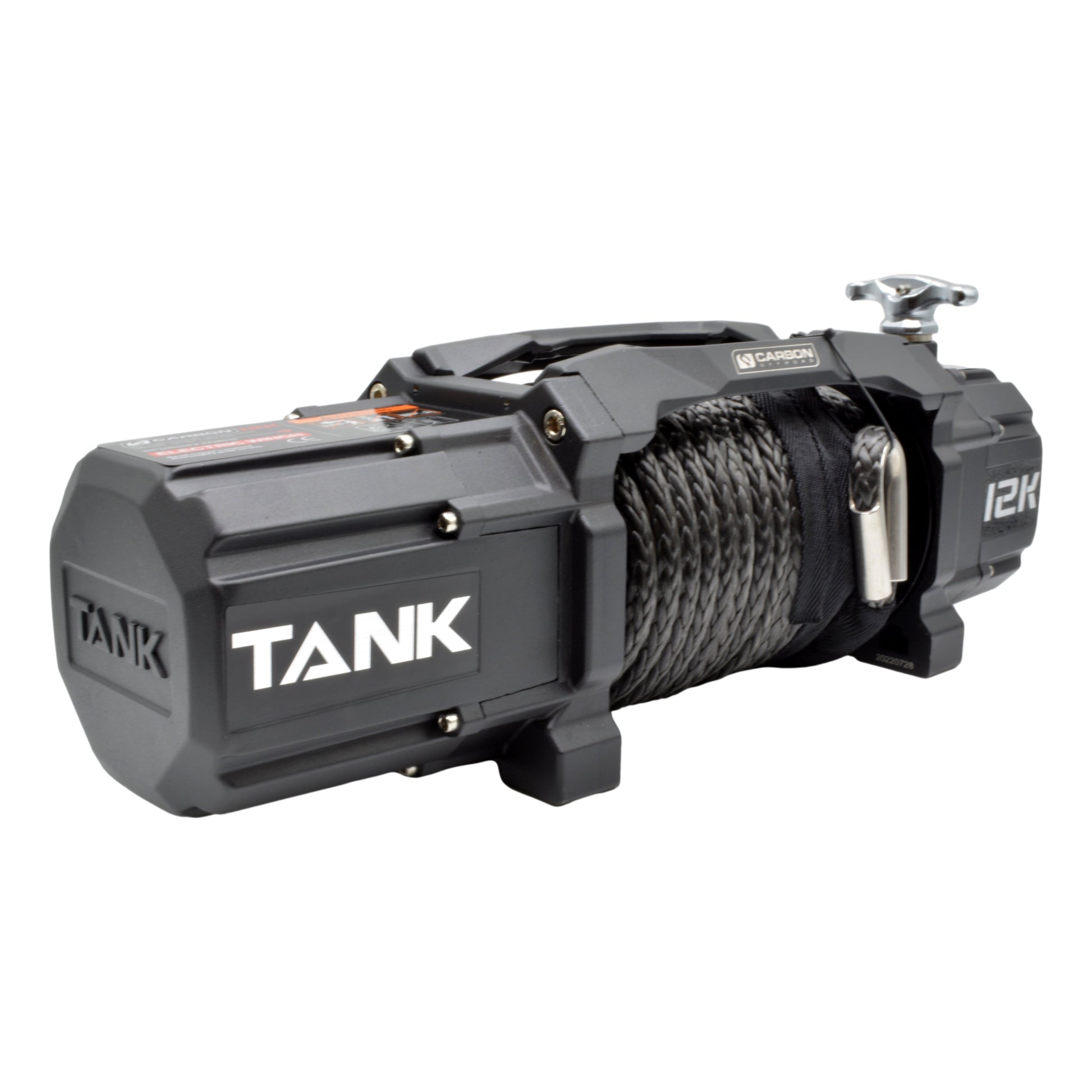

The Carbon Offroad TANK 12000lb electric winch is a force to be reckoned with. TANK is synonymous for indestructible, bulletproof, and powerful. TANK is also associated with heavy, which is something this winch is not!

⚠️ PLEASE NOTE: NO HOOK INCLUDED

This listing is for the winch and accessory kit only. No hook is included in this package. It is the perfect option if you already have a preferred hook or if you'd like to customize your rigging setup.

Overview

We understand that building the ultimate offroad rig often requires a lot of time, effort, and additional parts, and this all adds weight. The capability to self-recover a vehicle is a high priority for overlanding and touring, but you no longer need a cheap, heavy winch made from solid steel castings. Technology and materials have improved, leading to a winch designed and built like the TANK.

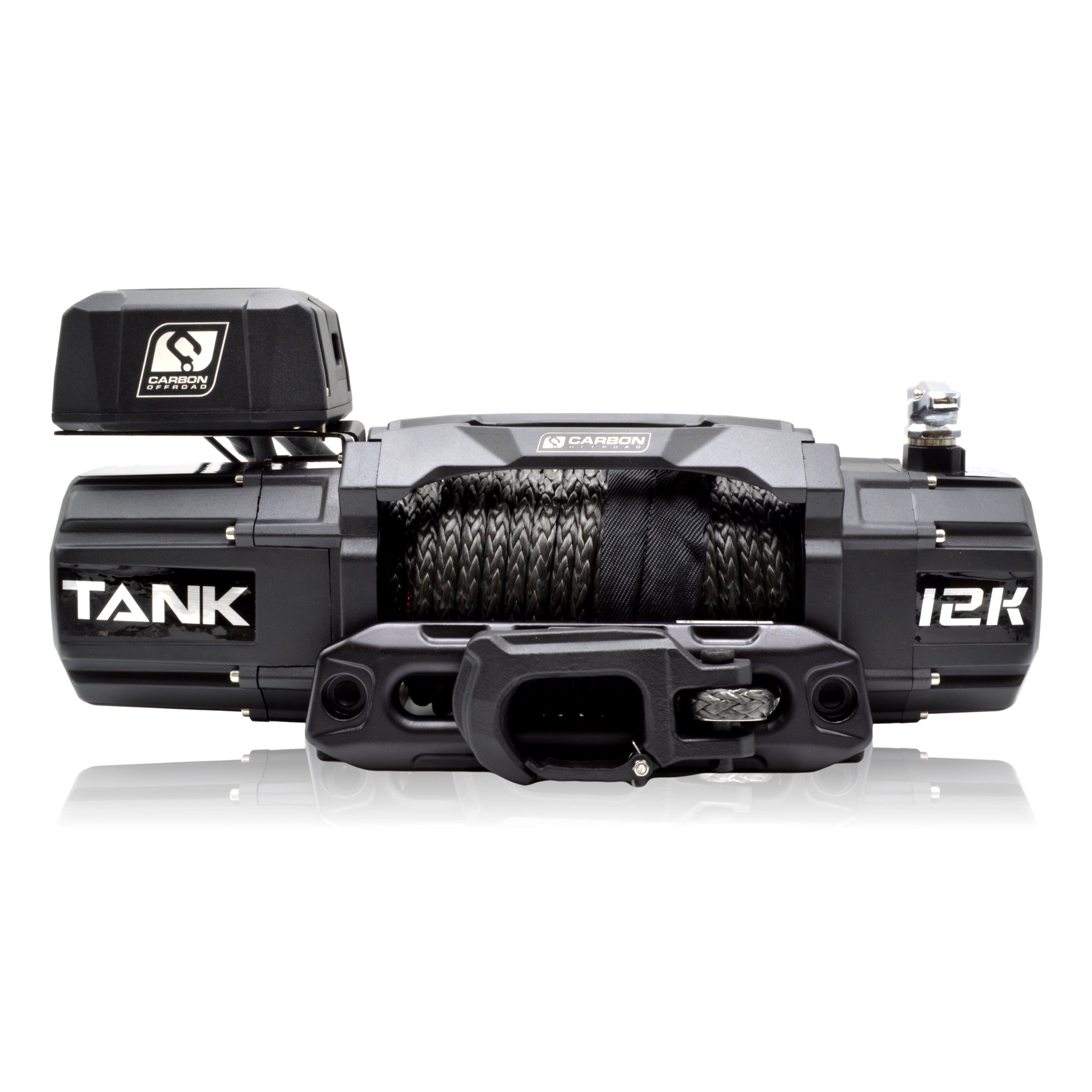

Featuring billet alloys machined on CNC mills, alloy castings for the gearbox housings and main frames, and a critical steel winch drum, the TANK boasts an aesthetic quality that is almost unmatched in the market. If you truly appreciate good design, the TANK will impress with its sexy lines, solid cast alloy control box, and solid alloy fairlead.

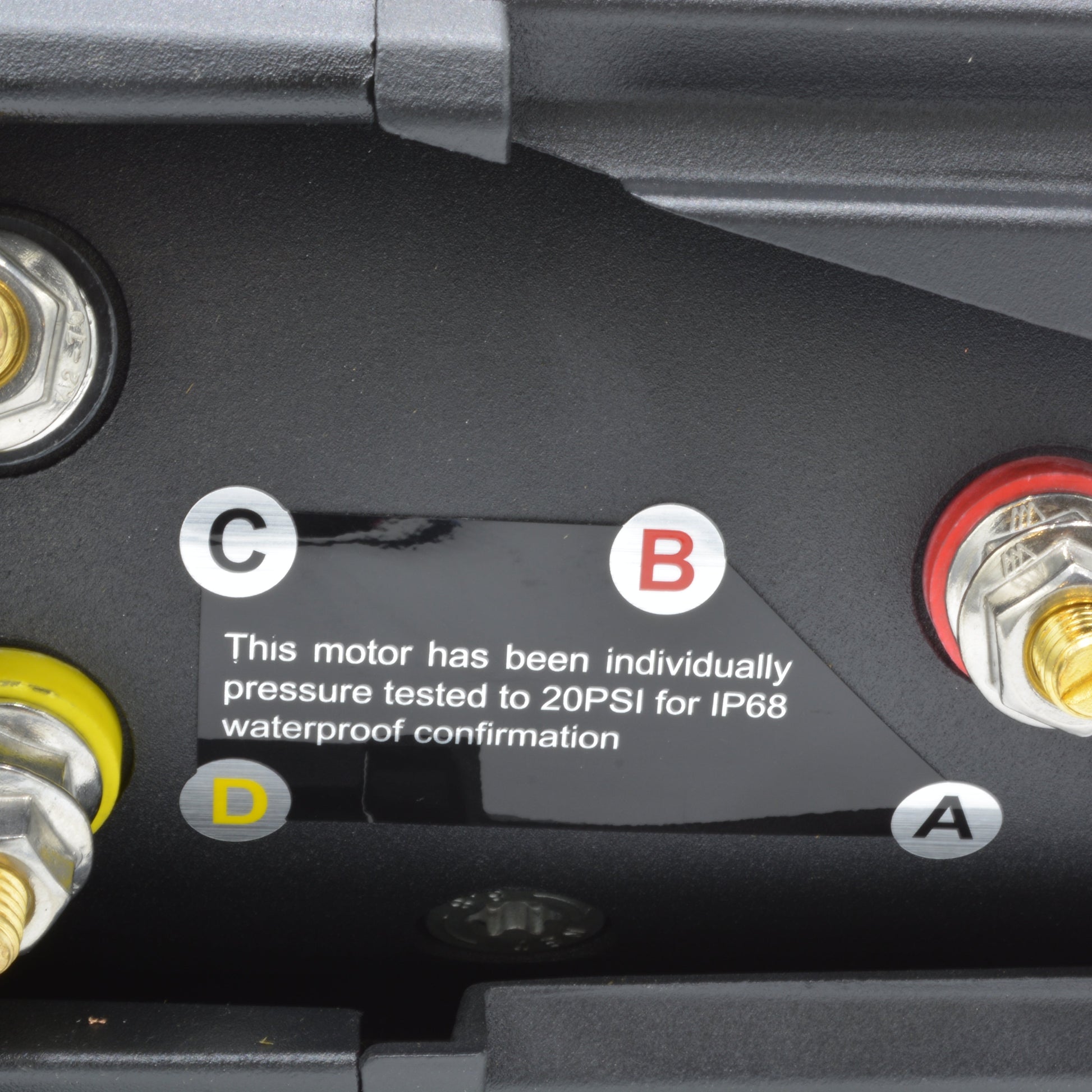

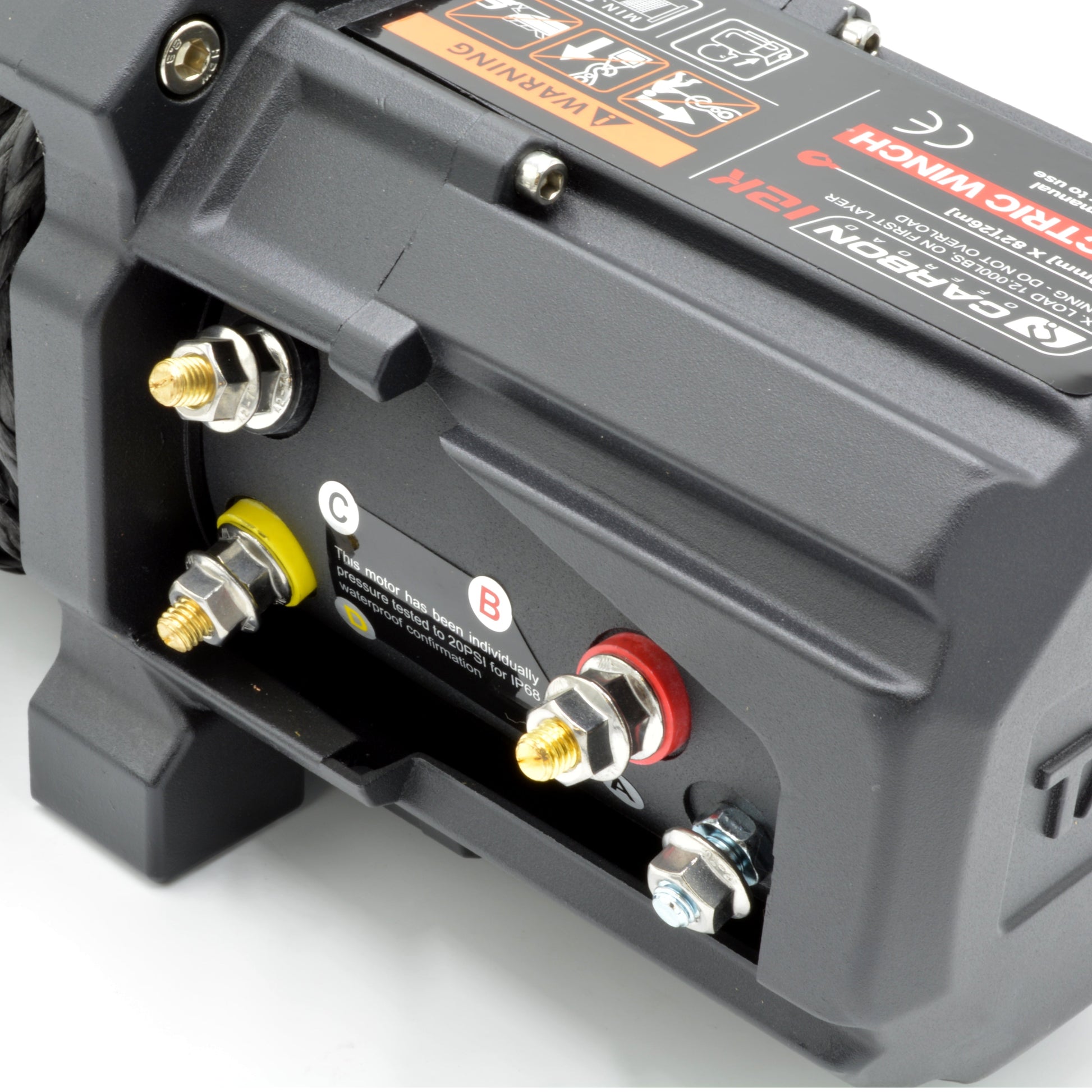

One of the most notable requirements of modern winches is waterproofing. The TANK winch features a system unseen before in the market. The winch motor and drum frame mount undergo real-life pressure leak testing to 20PSI (simulating 14 metres underwater) before leaving the assembly line. Furthermore, the gearbox housing features a two-stage mechanical and rubber o-ring sealing system ensuring 100% protection from water ingress to IP69K levels.

Features

• Powerful Performance: 12000lb rated pulling power driven by a 12V DC 7.0HP Series Wound motor.
• Extreme Waterproofing: Motor unit pressure tested to 20PSI (IP68), while the gearbox features a dual-stage sealing system for IP69K level protection.
• Advanced Braking: Features a gear train connected braking system which mitigates heat build-up on the drum, protecting your synthetic rope.
• Heavy-Duty Gear Train: Oversized 3-stage planetary gear train made from solid cut and hardened gear steel with a 234:1 ratio.
• Flexible Mounting: The premium cast alloy control box can be mounted over the drum, over the motor, or remotely flush onto a bar.

Contents

1 x Carbon TANK Winch
1 x Synthetic Rope (26m x 10mm diameter UHMWPE)
1 x Control Box Kit (complete with cables)
1 x 2-in-1 Wireless/Wired Remote Control (spare battery included)

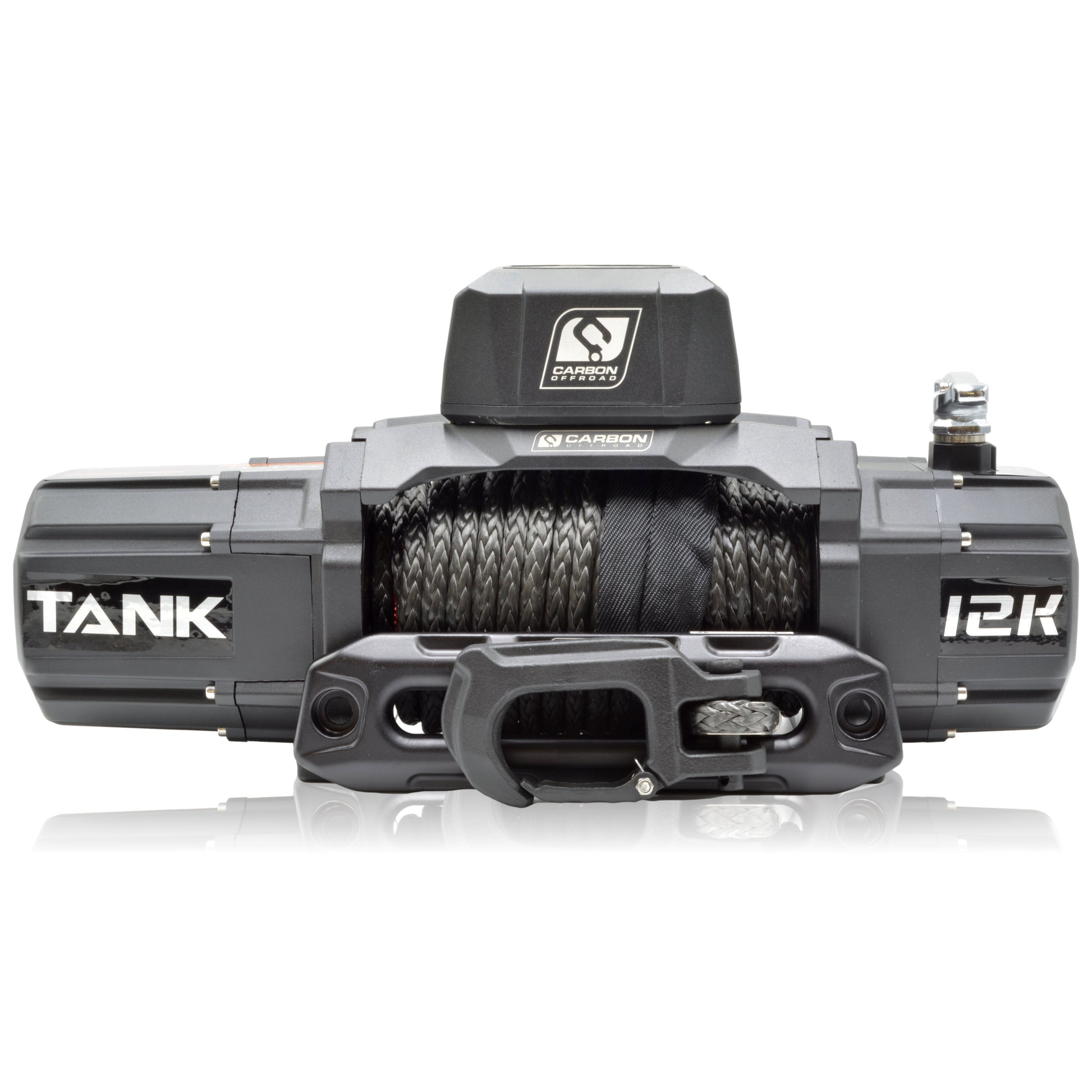

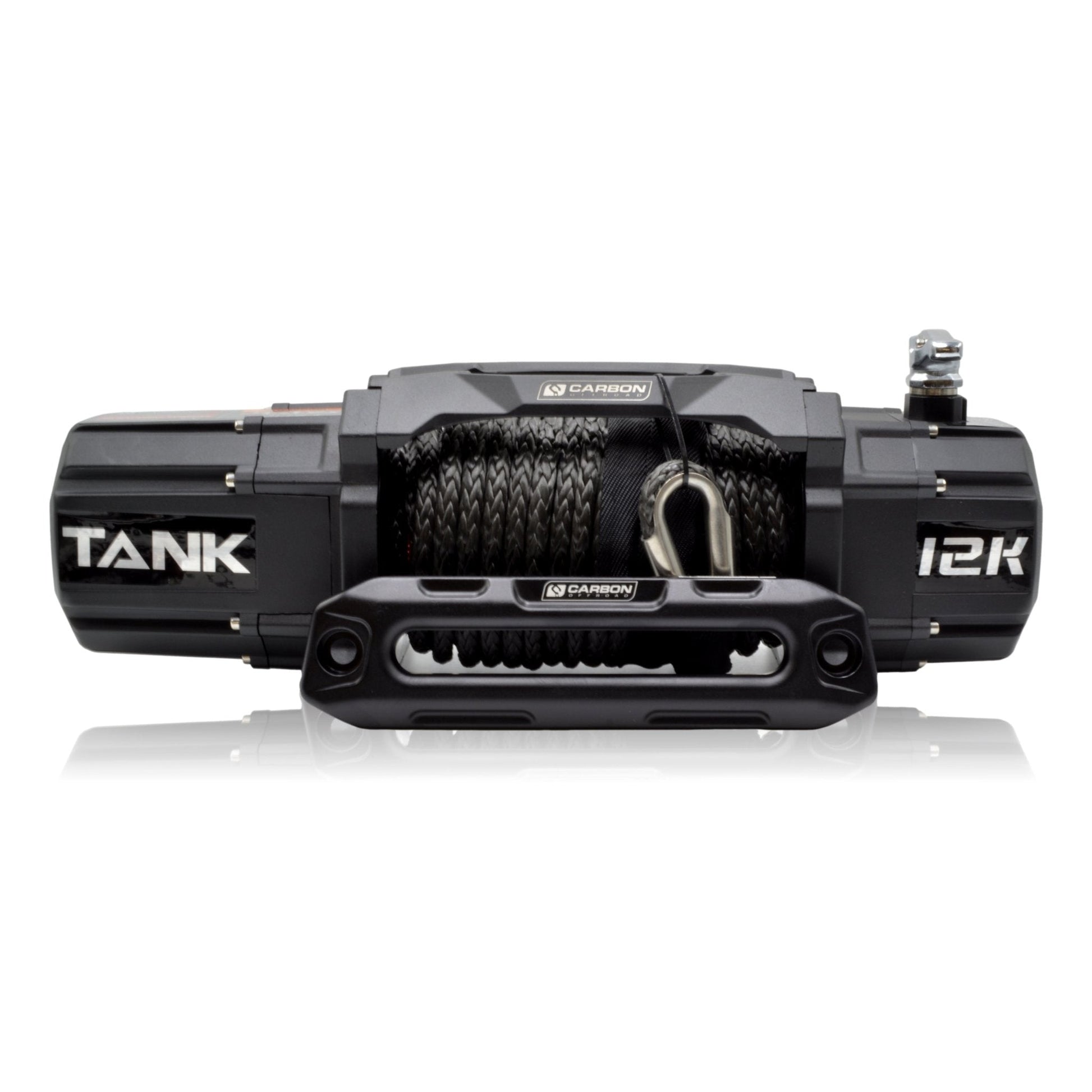

1 x Alloy Fairlead (standard offset)
1 x Rotary Battery Isolator Switch, Cable, and Bracket
1 x Hook Safety Strap
1 x Mounting Bolt Kit & Over-Motor Brackets
1 x Battery Earth Cable
1 x Instruction Manual

(Note: Hook is not included in this package.)

Rated Line Pull Capacity

12V DC Performance Specs
