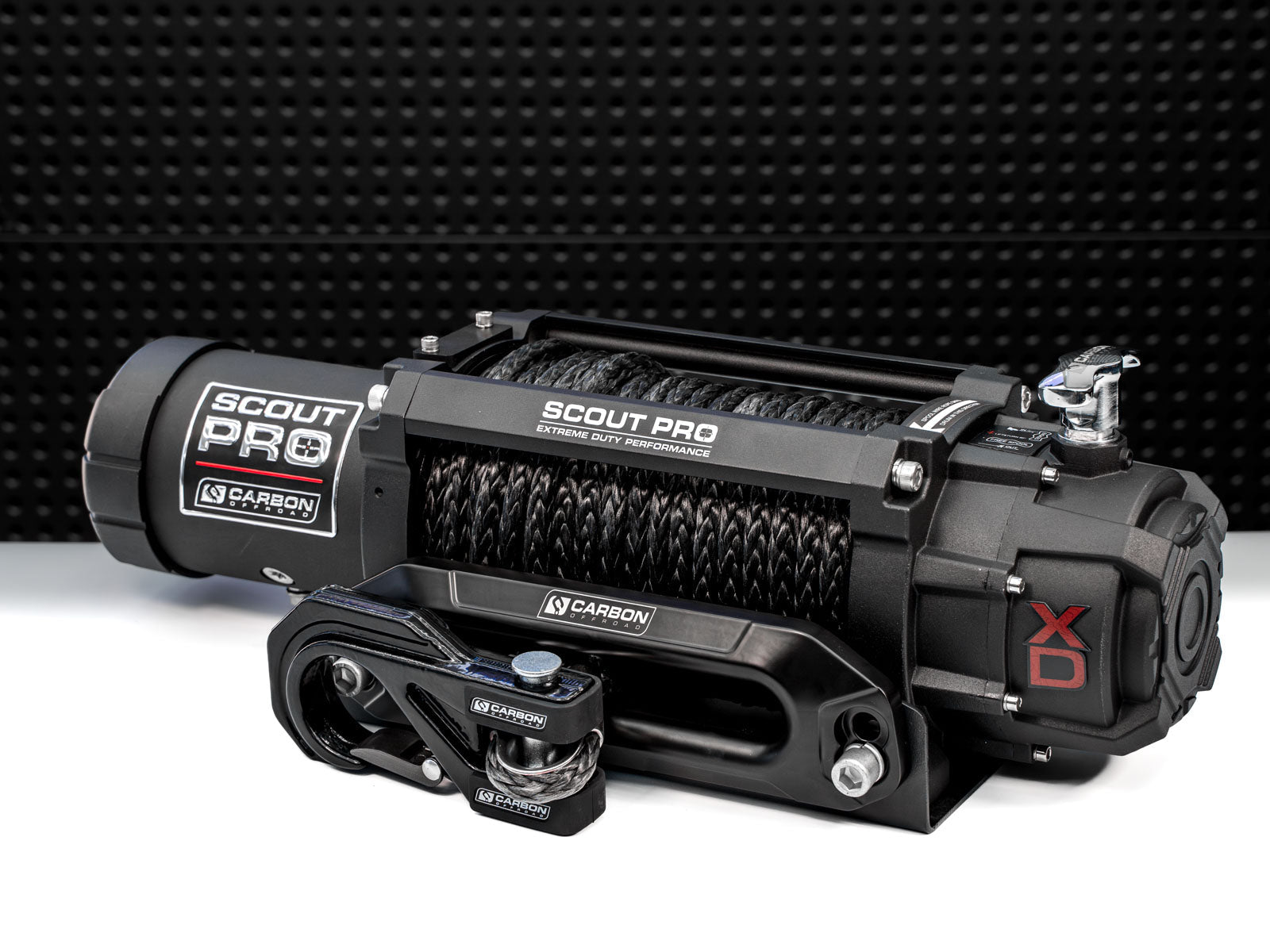

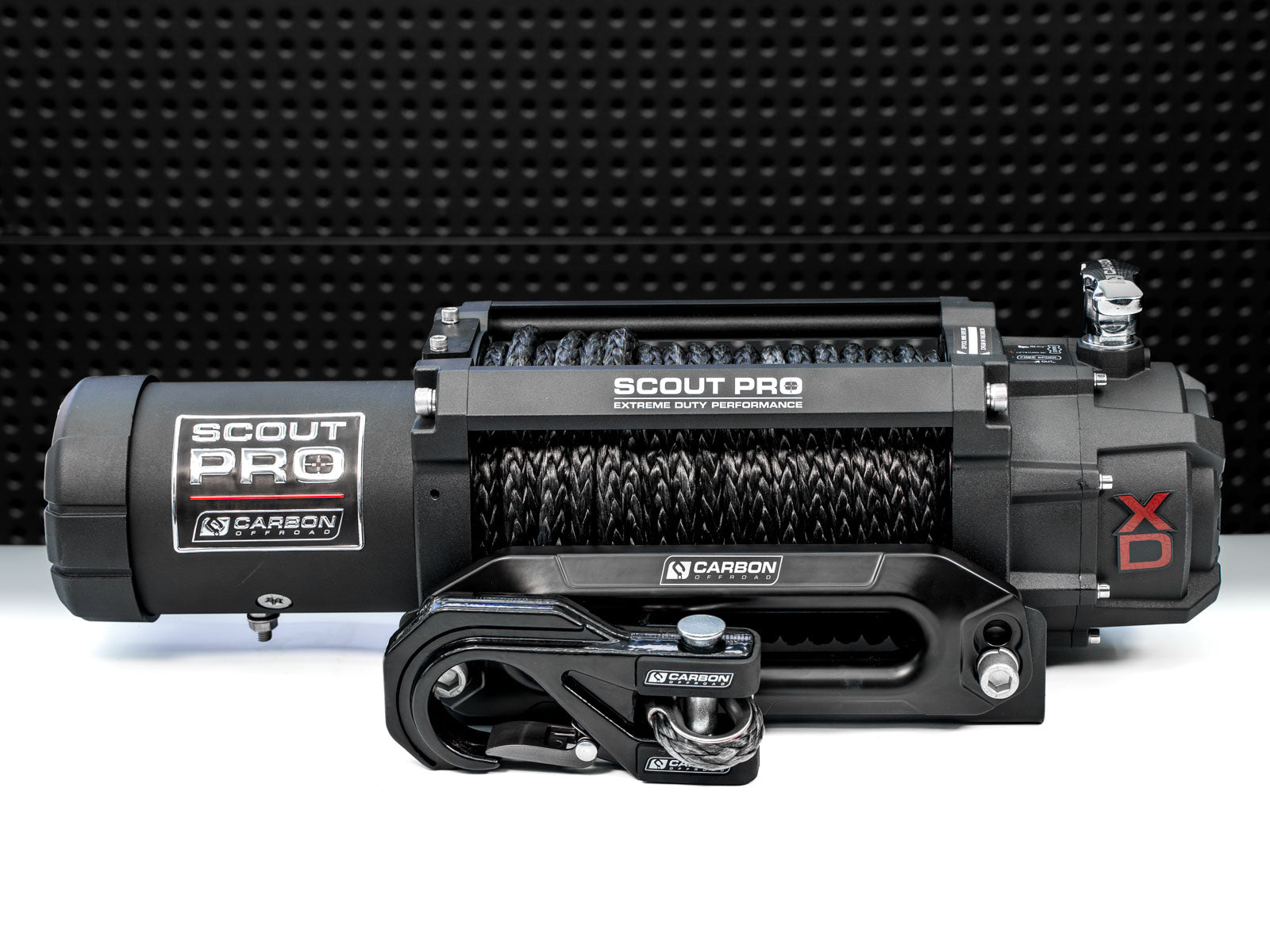

Carbon Scout Pro - 7000lb Winch

The Carbon Offroad Scout Pro 7K is a powerhouse engineered to be the fastest winch for light vehicles.

With a formidable 3175.1kg (7000lbs) pulling capacity, the Carbon CW-XD7 combines a 7.0HP series-wound motor, oversized modulus gearsets, and a heavy-duty solenoid to deliver relentless pulling power run after run.

Performance Series Overview

The Scout Pro 7K delivers the strength, durability, and confidence you need to conquer serious recoveries and keep the adventure moving.

Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.

Fitment Information

The Scout Pro series winches share the same 2023 Version 3 Winch Chassis as our tried and tested 12K winch. This configuration is suited for fast winching applications on off-road buggies, lightweight crawlers, and smaller wagons. Typical applications include lighter vehicles such as Jeep platforms, including Jeep XJ-style wagons. Due to the longer 7.0HP motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Fitment suitability should be confirmed prior to installation. The responsibility of fitment remains with the end-user or installer. Note: Check dimensions and clearance carefully before installation.

Recommended for vehicles such as off-road buggies, lightweight crawlers, and smaller wagons including lighter Jeep models and similar light vehicles.

Technical Notes

Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.

You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.

Features

• Motor: 7.0HP High-Torque Motor
• Gearbox: 80:1 Heavy Duty Performance Gearbox
• Rope: 10mm x 24m (0.4" x 78.7ft) UHMWPE Synthetic Rope (Pre-stretched)
• Breaking Strain: Rated at 9000kg (19841.6lbs) minimum
• Chassis: Carbon Offroad 2023 V3 Winch Chassis (shared with proven 12K winch)
• Optional Upgrade: Compatible with Carbon Offroad Air Freespool Clutch Upgrade

Contents

1 x Carbon Scout Pro 3175.1kg (7000lbs) Winch
1 x 24m (78.7ft) of 10mm (0.4") high density pre stretched premium UHMWPE rope
1 x Forged rope thimble
1 x Black MegaPro hook
1 x MegaPro billet fairlead
1 x Wired remote
1 x Wireless remote
