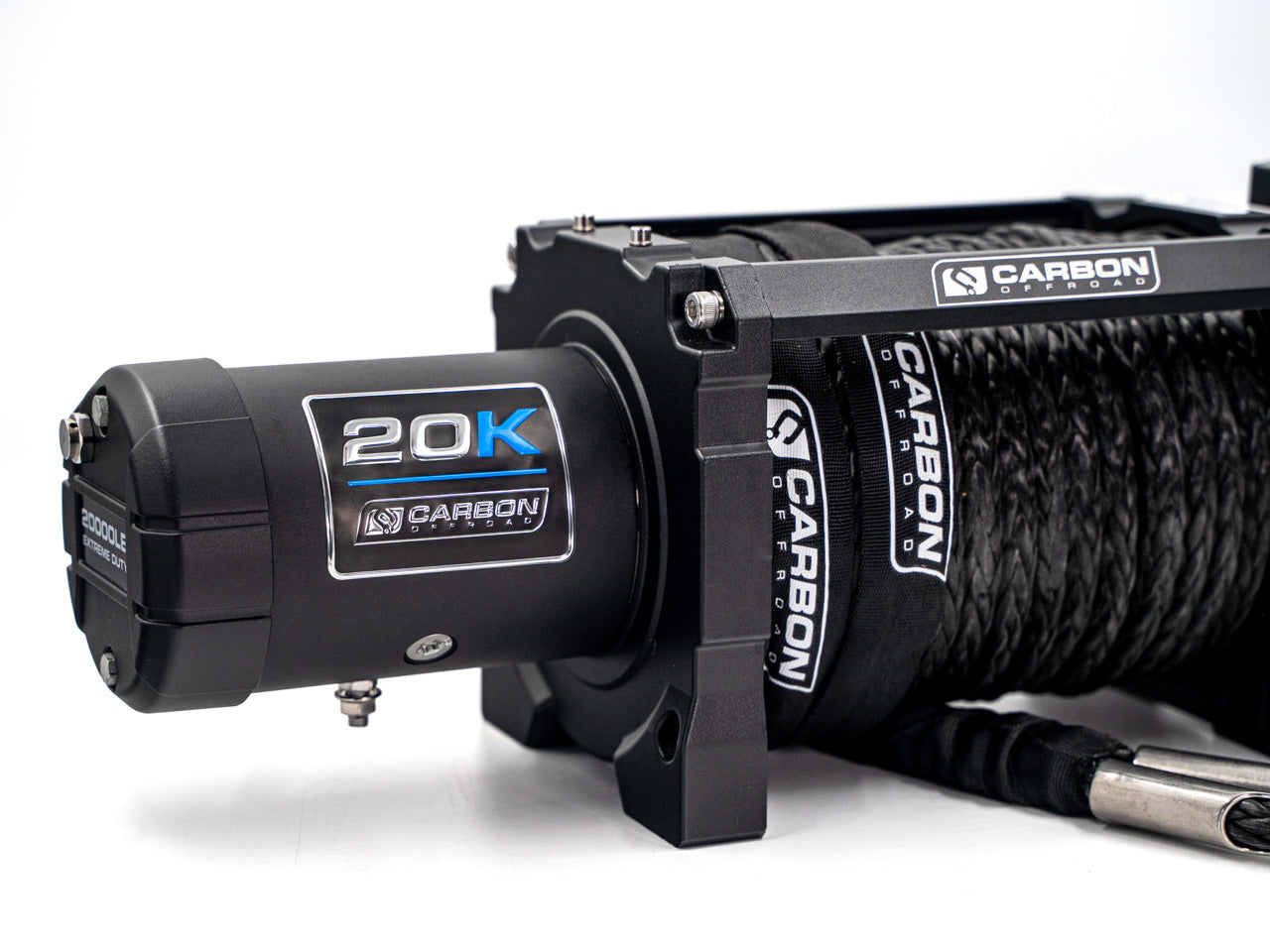

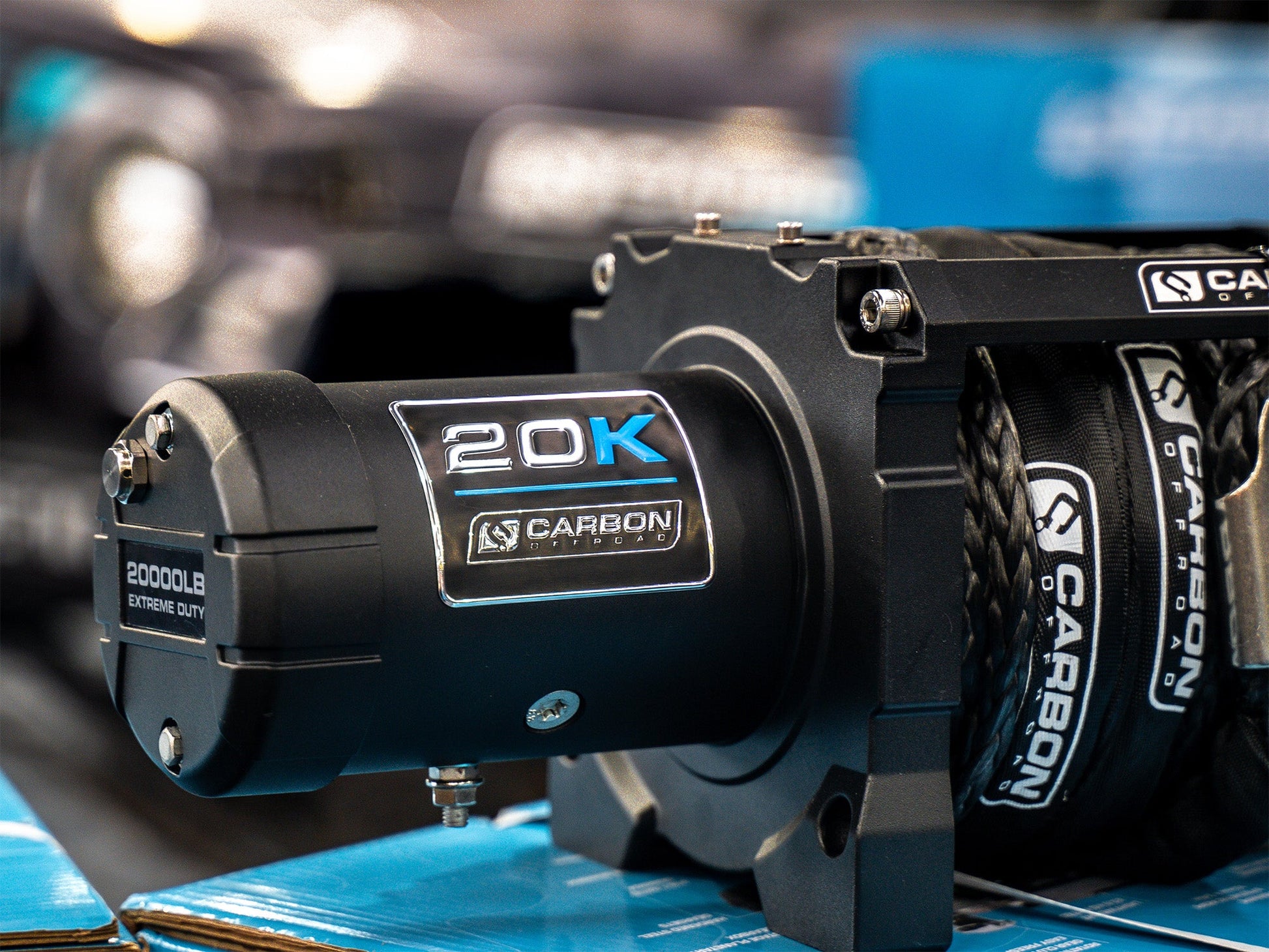

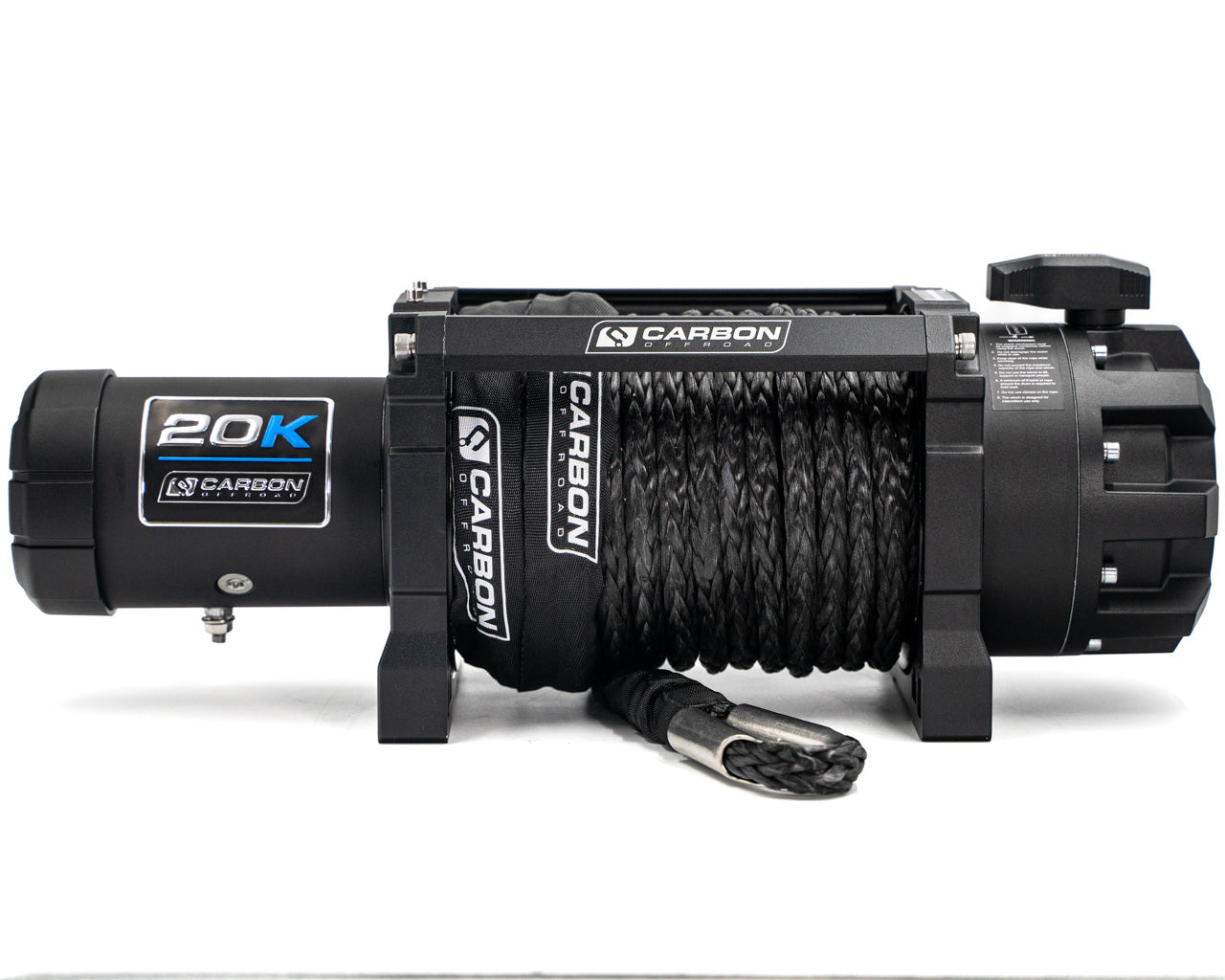

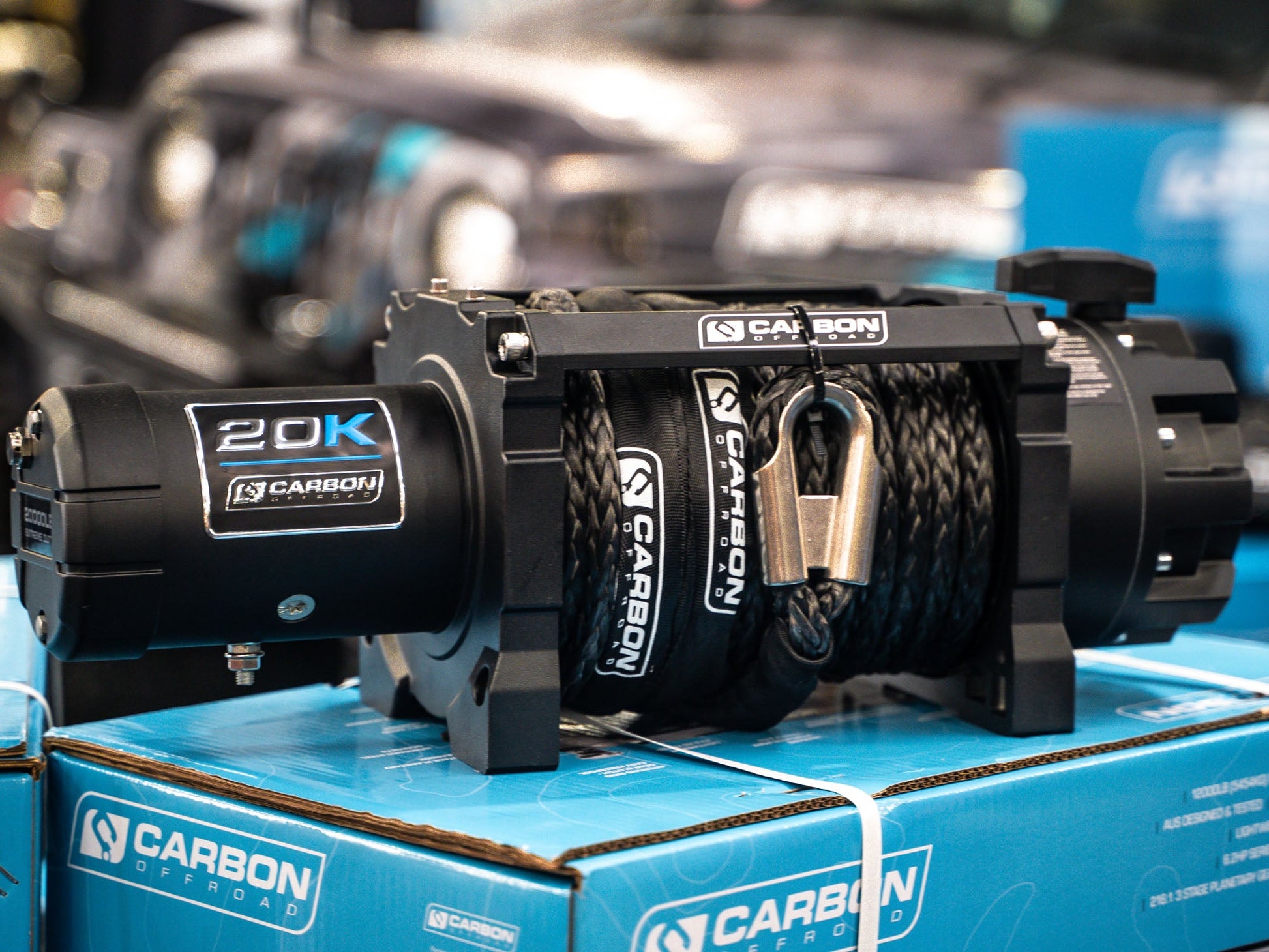

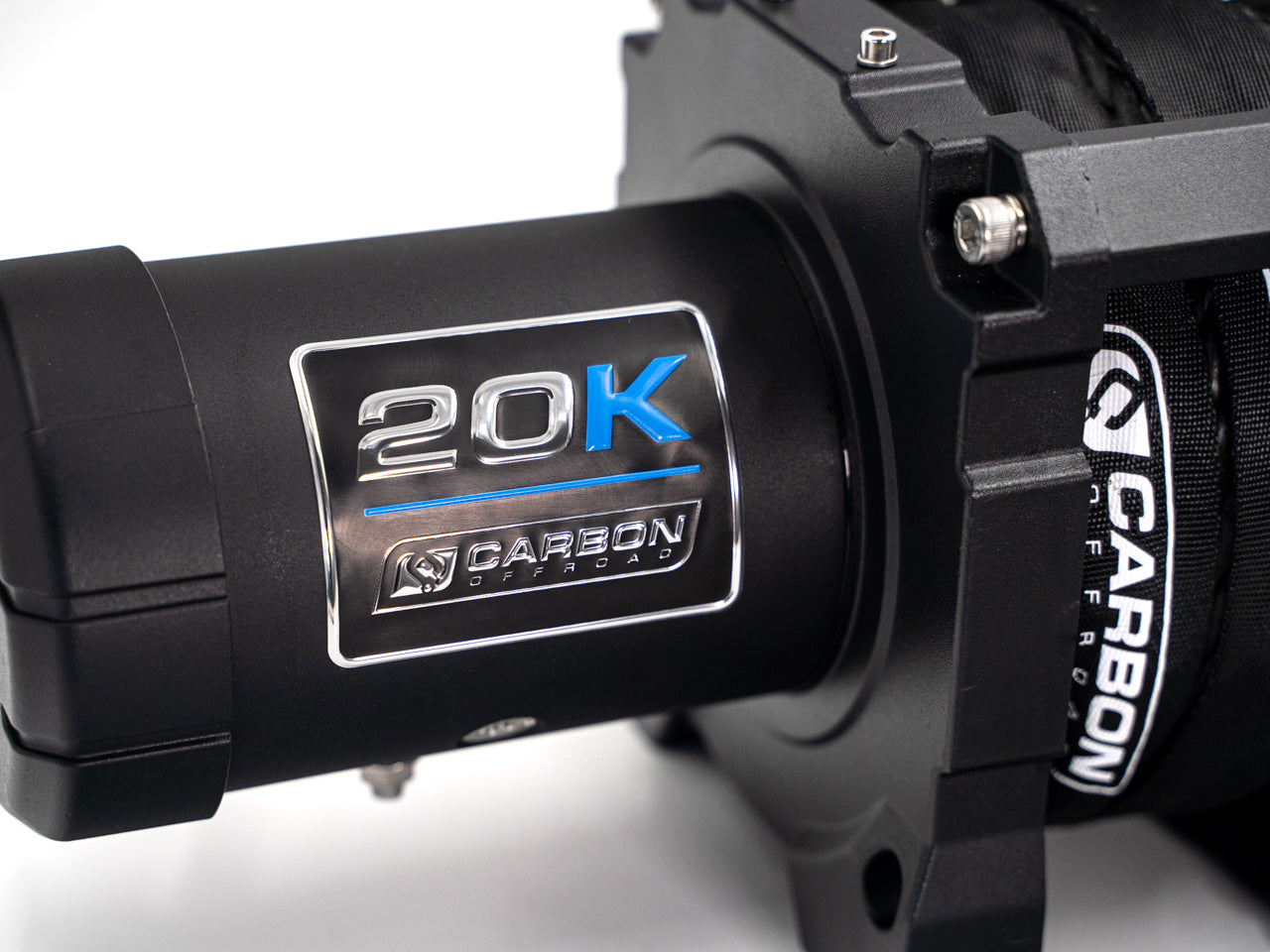

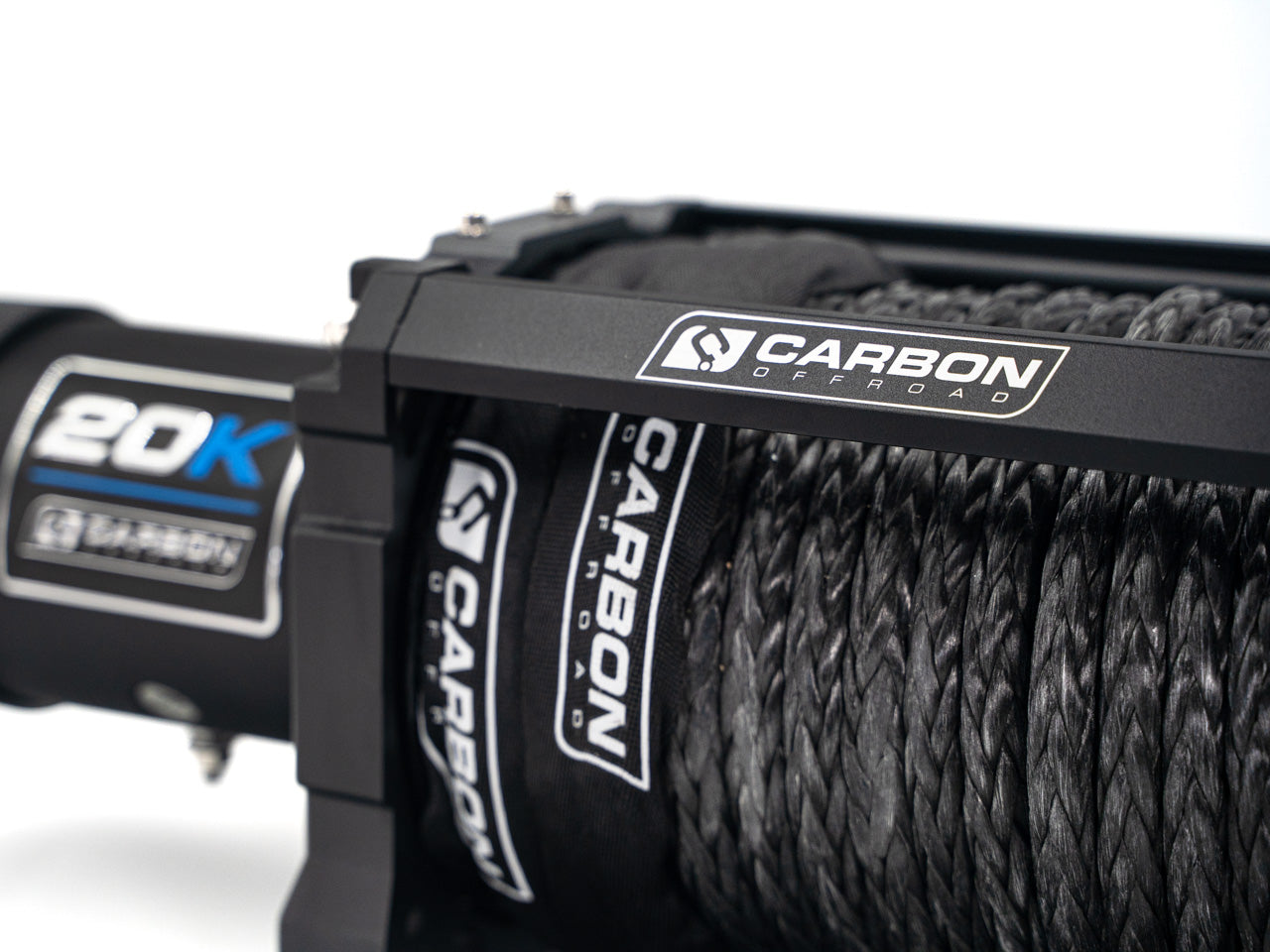

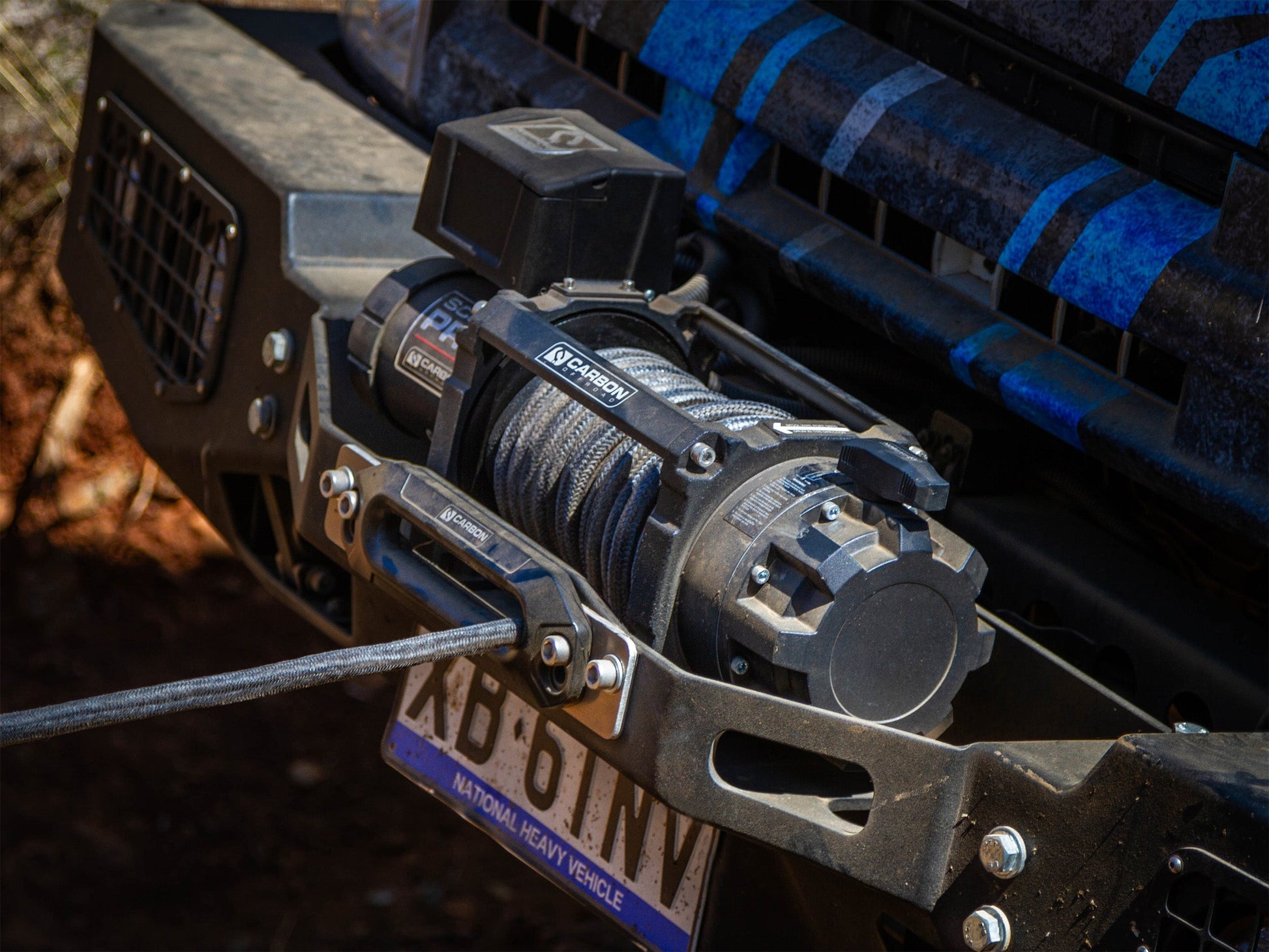

Carbon Scout Pro - 20000lb Extreme Duty Truck Winch

Extreme Duty Recovery Power

The Carbon Offroad Extreme Duty Scout Pro 20K Truck Winch is engineered to deliver reliable performance in demanding off-road and recovery environments, featuring a massive 7HP series-wound motor and an ultra-low 354:1 three-stage planetary gearbox.

Overview

The Carbon Offroad Scout 20K is a high-capacity recovery powerhouse. With a rated pulling capacity of 9072kg (20000lbs), the CW-XD20 is specifically suited to hauling heavy trailers, recovering large commercial vehicles, and operating in extreme terrain where consistent, unstoppable pulling power is required.

For ultimate convenience, you can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for seamless integration with the Scout Pro series.

Features

• Colossal Pulling Capacity: Delivers a massive 9072kg (20000lbs) single-line pull for heavy-duty trucks and industrial recovery.
• Proportional Braking: The automatic brake system integrated within the motor frame applies force based on the load, significantly reducing heat buildup on the drum.
• MegaPro Premium Components: Includes the multi-position CNC billet type 3 hard anodised fairlead for maximum protection of your high-capacity synthetic rope.

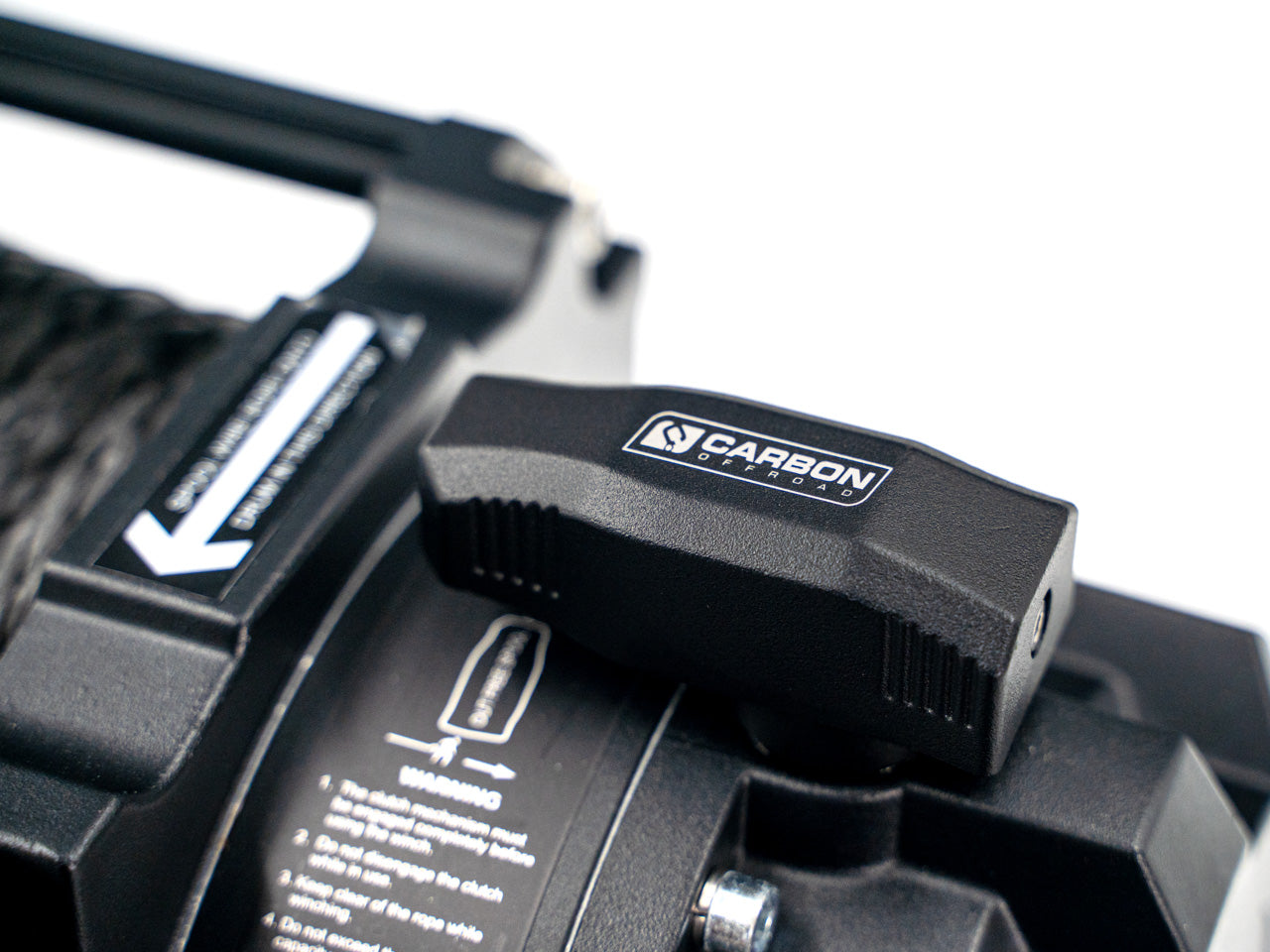

• Rotating Ring Gear Clutch: Provides easy switching between freespool and engaged modes for rapid deployment.
• Weatherproof Electronics: Features a 600A sealed solenoid and an IP68 rating for protection against water ingress and dust.
• Unmatched Warranty: Backed by a Lifetime Mechanical Warranty and 5-Year Electrical and Water Ingress Protection.

Contents

1 x Carbon Offroad Scout Pro 20K Truck Winch
1 x Synthetic Rope (25m x 13mm / 82ft x 0.5")
1 x MEGAPRO CNC Billet Fairlead
1 x 600A Sealed Solenoid & Control Box
1 x Wired Remote Control (3.6m / 11.8ft lead)
1 x Wireless Remote Control
1 x Mounting Hardware Kit

12V DC Performance Specs
