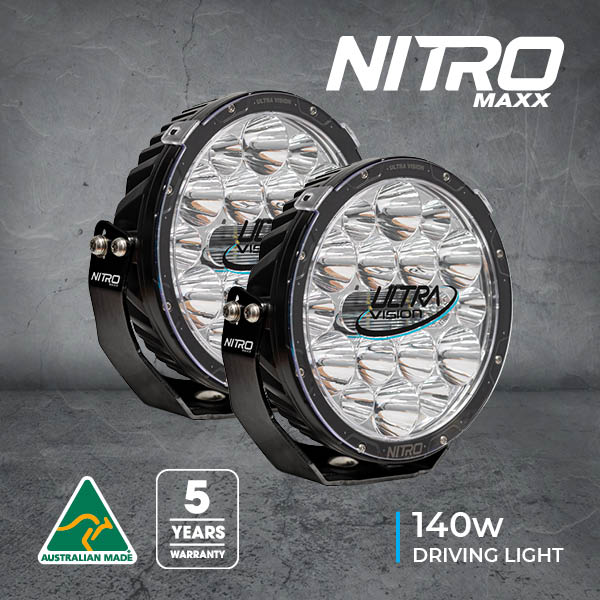

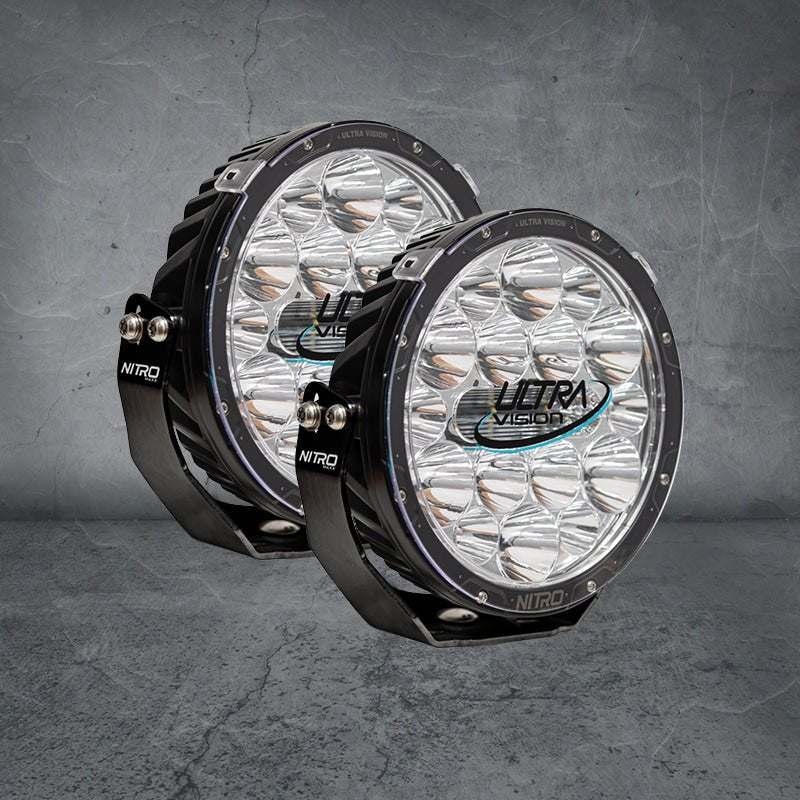

Nitro 140 Maxx 9″ LED Driving Light (Pair)
Nitro 140 Maxx 9″ LED Driving Light (Pair)
SKU:MISSING_SKU
Couldn't load pickup availability
Now with improved performance.

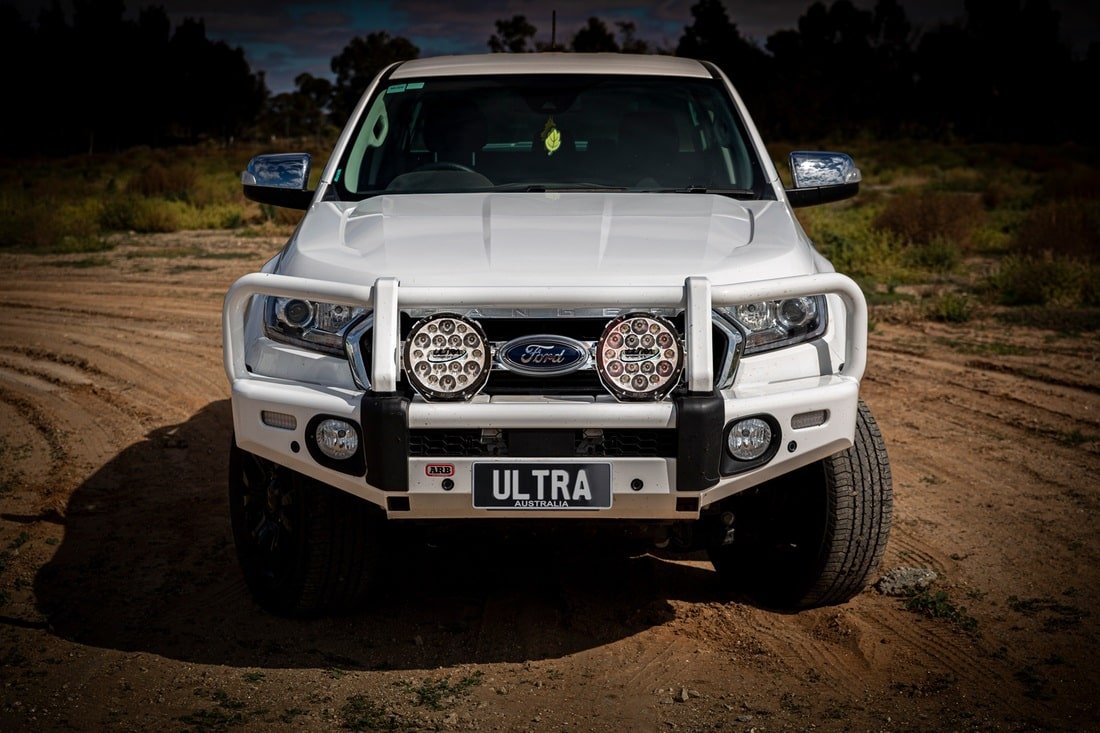

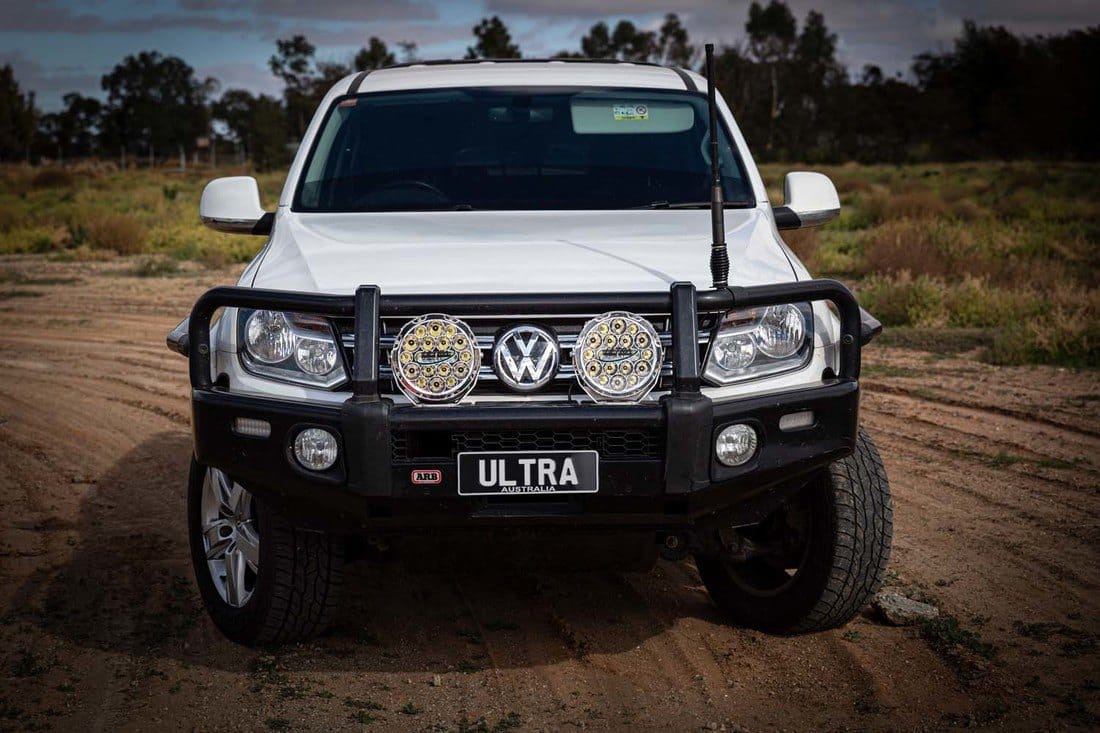

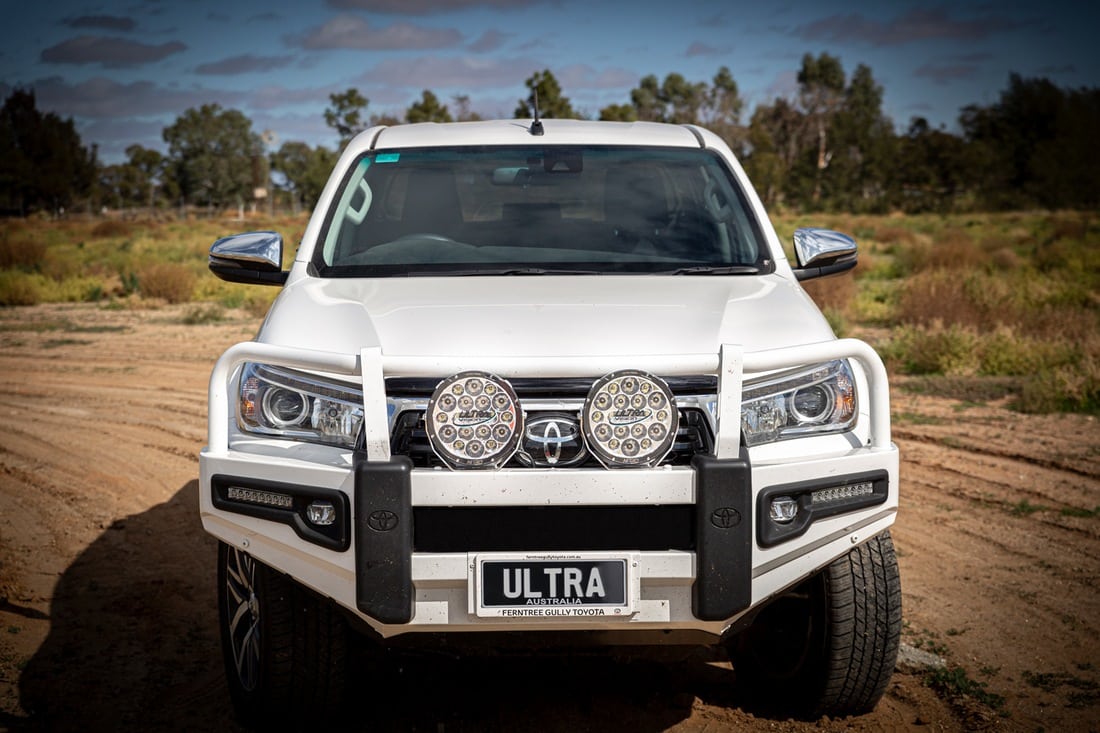

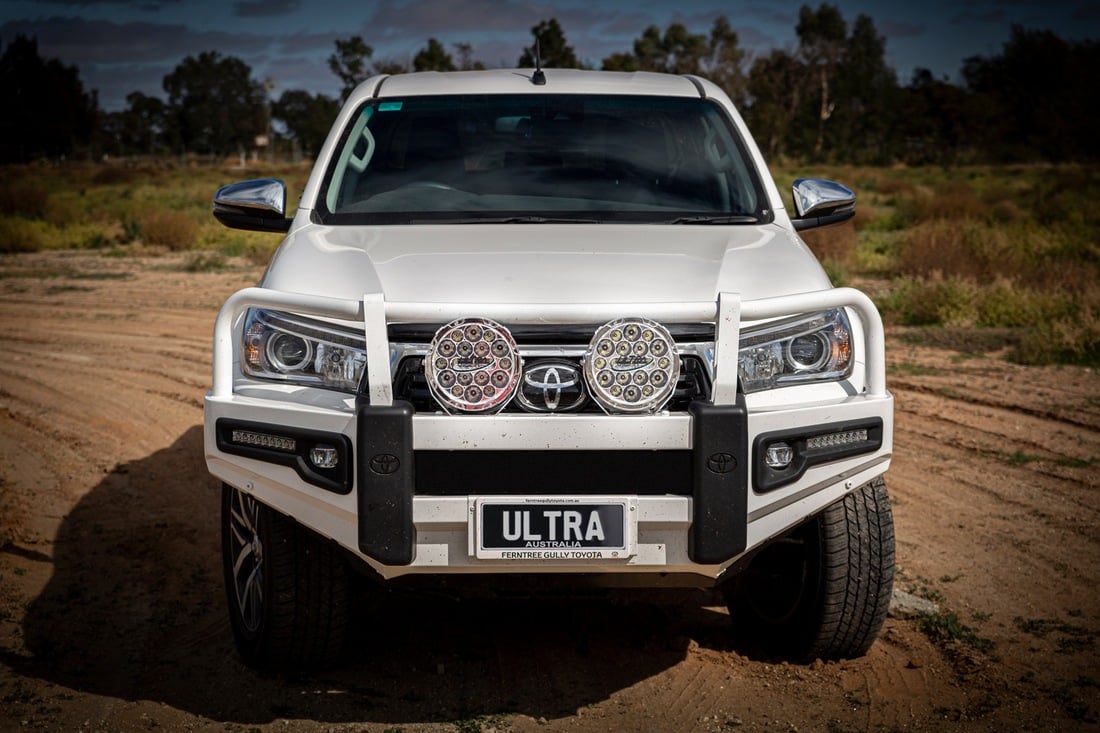

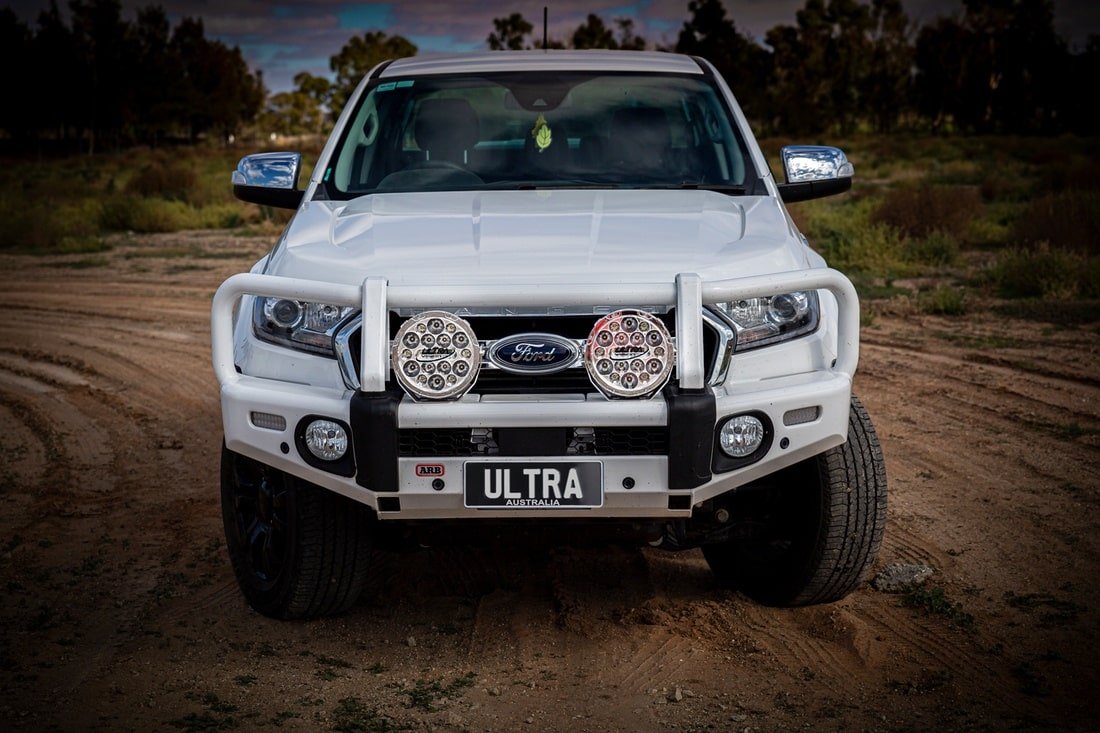

The NITRO 140 Maxx is the latest generation of high performance LED lighting. Utilising a sophisticated Contrl® optic the light usage is optimised to give width and distance from one reflector. The Widr® option further increases the width, but still giving more than 1 lux at 1.6kms. The new slim body design allows for fitment to the majority of vehicles and the reduced weight further improves options. Utilising the proven stainless steel mounting bracket ensures years of trouble free life. Units are supplied complete with clear polycarbonate lens covers, wiring harness and anti-theft nuts.
By investing in Nitro 140 Maxx’s you can be confident you’ve made the right choice.

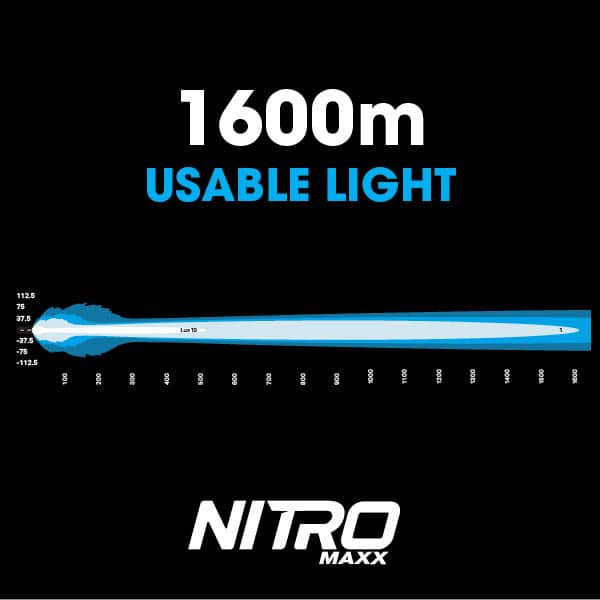

Beam Patterns
| SPECIFICATIONS | Nitro 140 Maxx |
|---|---|
| Wattage | 140W (per lamp) |
| Light Source | 19 x High Power LED’s (per lamp) |
| Light Output – Raw | 28,328 Lumens (per pair) |
| Light Output – Effective | 22,520 Lumens (per pair) |
| Voltage | 9V-36V |
| Current Draw | 20A @ 13.5V (per pair) |
| Operating Temperature | -40°C to +80°C |
| Waterproof rating | IP68 |
| Connector Type Plugs | 2 Pin standard Deutsch |
| Housing | Die-Cast Alloy |
| Outer Lens Construction | Polycarbonate |
| Brackets | 4mm Stainless Steel |
| Colour Temperature | 4500K or 5700K |
| Lifespan | 50,000 Hours |

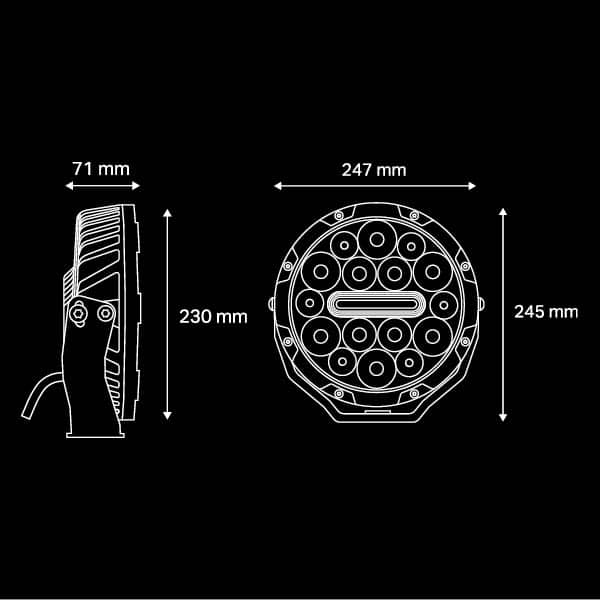

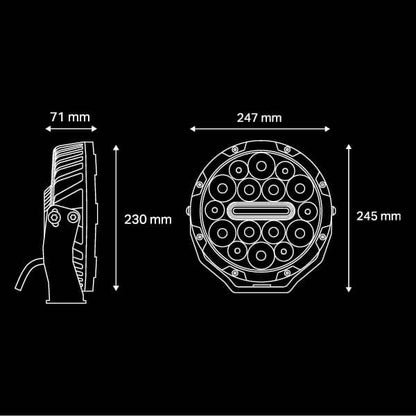

| Diameter | 230mm |
| Net Weight | 2.95kg (per lamp) |
| Mounting Suitable | All types |
| Beam Type | Widr® |
| Warranty | 5 Years |
| Harness and anti-theft nuts included | Yes |
| PART NUMBERS | |
| Widr, 5700K, Black Rim | PVM2314LEDW/PR |
| Widr, 4500K, Black Rim | PVM2314LEDW4/PR |
| Widr, 5700K, Chrome Rim | PVM2314LEDW-C/PR |
| Widr, 4500K, Chrome Rim | PVM2314LEDW4-C/PR |
